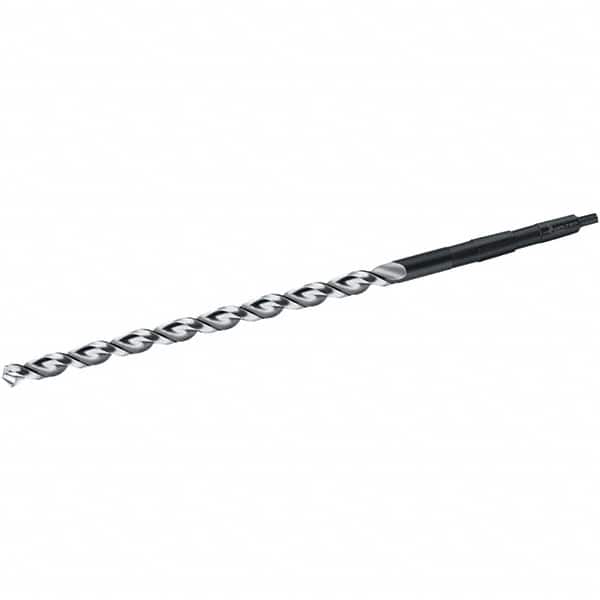

Walter-Titex - 27mm, 3MT 130° Point High Speed Steel Taper Shank Drill Bit
Item #: 53030870
Brand: Walter-Titex
Model #: 5066301
Features and Benefits
High speed steel (HSS) provides good wear resistance and can be used in general purpose applications for both ferrous and nonferrous materials.
Bright provides a smooth, polished finish on the tool. It increases chip flow in softer materials such as aluminum, wood and plastic.
Parabolic flutes are constructed with a wider flute shape for increased chip flow.
| Product Specifications | |
|---|---|
| Drill Bit Size (mm) | 27.00 |
| Drill Bit Size (Decimal Inch) | 1.0630 |
| Drill Point Angle | 130 |
| Shank Taper Designation | 3MT |
| Drill Bit Material | High Speed Steel |
| Drill Bit Finish/Coating | Bright |
| Flute Type | Parabolic |
| Overall Length (mm) | 460.00 |
| Flute Length (mm) | 305.00 |
| Flute Length (Decimal Inch) | 12.0079 |
| Maximum Drilling Depth (Decimal Inch) | 10.91 |
| Cutting Direction | Right Hand |
| Point Type | UFL |
| Web Thinning | Web-Thinned |
| Specification Number | DIN 1870-I; DIN 228-B |
| Drill Bit Diameter Tolerance (mm) | h8 |
| Material Grade | M2 |
| Specification Designation | DIN |
| Series/List | A4622 |
