Walter-Titex - 8mm 140° 2-Flute Solid Carbide Extra Length Drill Bit - Exact Tooling

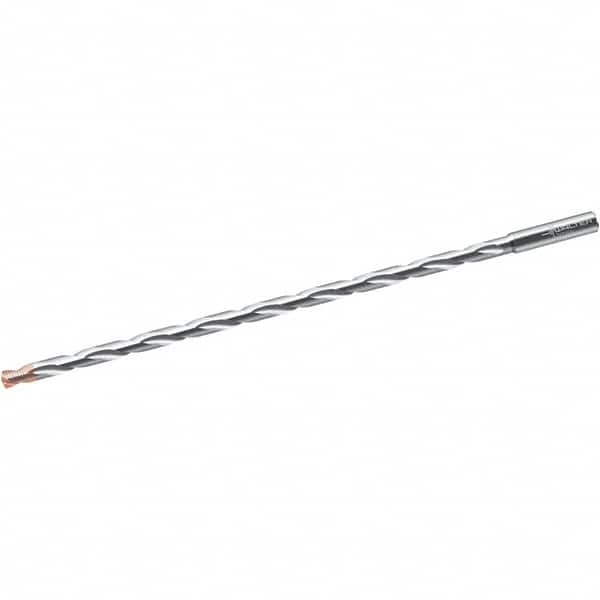

Walter-Titex - 8mm 140° 2-Flute Solid Carbide Extra Length Drill Bit


Item #: 41789801
Brand: Walter-Titex
Model #: 6901270

Features and Benefits

Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, non ferrous materials, plastics, and other tough-to-machine materials.
TiNAl/AlCrN is a high performance, multi-layer coating ideal for extreme machining parameters where large cutting forces and a high amount of heat is generated. For steels and cast iron materials only.
Product Specifications
Drill Bit Size (mm) 8.00
Drill Bit Size (Decimal Inch) 0.3150
Drill Point Angle 140
Drill Bit Material Solid Carbide
Drill Bit Finish/Coating TiNAl/AlCrN
Overall Length (Decimal Inch) 10.2360
Overall Length (mm) 260.00
Through Coolant Coolant Through
Shank Diameter (Decimal Inch) 0.3150
Shank Diameter (mm) 8.00
Flute Length (mm) 220.00
Flute Length (Decimal Inch) 8.6610
Cutting Direction Right Hand
Flute Length x Diameter Ratio 25xD
Flute Type Spiral
Number of Flutes 2
Shank Type Straight
Drill Point Length (mm) 1.46
Drill Point Length (Decimal Inch) 0.0570
Series/List DC170
$ 651.00
