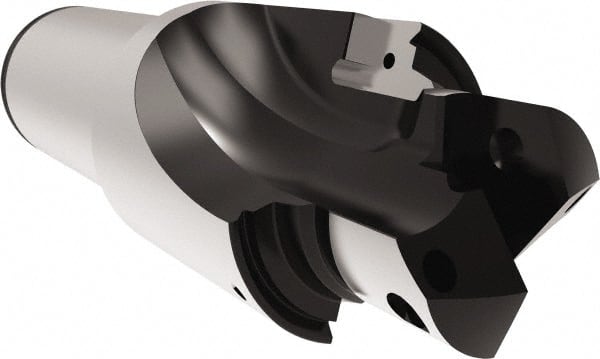

Allied Machine and Engineering - M30x2.00, 1.102" Pilot Diam, 1.693" Spotface Diam, 0.874" Pilot Length, Tube Dash 14, Indexable Porting Tool
Item #: 71014245
Brand: Allied Machine and Engineering
Model #: I6149-14R2-32FM
Product Specifications
| Port Standard Designation | ISO 6149-1:1993; SAE J2244-1 |
| Pilot Insert Type | Spade Blade Insert |
| Port Thread Size | M30x2.00 |
| Tube Dash Number | 14 |
| Pilot Diameter (Decimal Inch) | 1.1020 |
| Spotface Diameter (Decimal Inch) | 1.6930 |
| Pilot Length (Decimal Inch) | 0.8740 |
| Shank Diameter (Decimal Inch) | 1.2600 |
| Number of Porting Inserts | 2 |
| Porting Insert Style | I6149-14-C3H; I6149-14-C5A; I6149-14R-C3H; I6149-14R-C5A |
| Porting Diameter (Decimal Inch) | 1.2770 |
| Overall Length (Decimal Inch) | 4.9200 |
| Through Coolant | Through Coolant |
| Porting Angle | 15 |
| Porting Angle Length (Decimal Inch) | 0.1300 |
| Head Length (Decimal Inch) | 2.6400 |
| Shank Length (Decimal Inch) | 2.2800 |
| Spotface to Shoulder Length (Decimal Inch) | 1.5260 |
| Series | AccuPort 432 |
