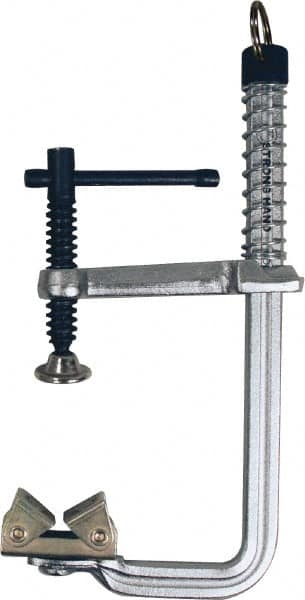

Strong Hand Tools - 3-1/4" Deep Throat, 5-1/2" Max Capacity, Standard Sliding Arm Clamp - 500 Lb Clamping Pressure
Item #: 71022644
Brand: Strong Hand Tools
Model #: UDV65
Exact Tooling IR#: 04
Features and Benefits
Sliding arm clamps are used for holding a workpiece in place during an operation. The sliding arm is designed with a rail, pressure plate and sliding jaw for fast clamping action. An extender block or V-pad will be required for some applications.
T-handles are designed with threaded spindles allowing for maximum clamping pressure.
| Product Specifications | |
|---|---|
| Clamp Type | Standard |
| Maximum Capacity (Inch) | 5-1/2 |
| Throat Depth (Inch) | 3-1/4 |
| Handle Style | T-Handle |
| Frame Material | Steel |
| Clamping Pressure (Lb.) | 500.00 |
| Series | UDV |
| Rail Size (Inch) | 5/8 x 5/16 |
| Tapped Hole Size | 1/4-20 |
| Includes | Adjustable Magnetic V-Pad |
