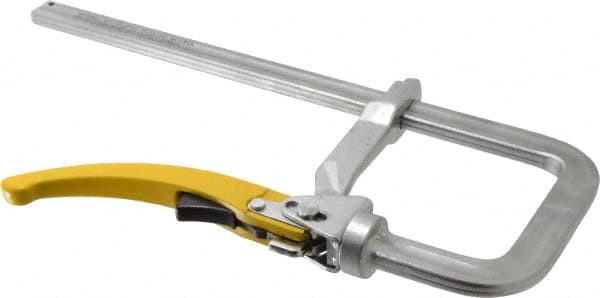

Strong Hand Tools - 4-3/4" Deep Throat, 10" Max Capacity, Step Over Sliding Arm Clamp - 1,000 Lb Clamping Pressure
Item #: 71022651
Brand: Strong Hand Tools
Model #: UF100JR
Exact Tooling IR#: 04
Features and Benefits
Step-over sliding arm clamps are used for reaching over an obstacle that is in the way of clamping a workpiece. They can be used with an extender block to project over the lip on channel iron, angle-iron, I-beams and areas where clearance is required.
Lever handles allow for quick clamping and release during an operation. They do not have threaded spindles and cannot be over tightened.
| Product Specifications | |
|---|---|
| Clamp Type | Step-Over |
| Maximum Capacity (Inch) | 10 |
| Throat Depth (Inch) | 4-3/4 |
| Handle Style | Lever |
| Frame Material | Steel |
| Clamping Pressure (Lb.) | 1000.00 |
| Series | UF |
| Rail Size (Inch) | 7/8 x 7/16 |
| Tapped Hole Size | 3/8-16 |
