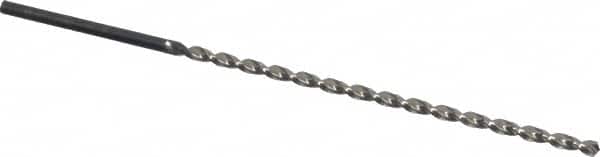

Walter-Titex - 3/16" 130° 2-Flute High Speed Steel Extra Length Drill Bit
Item #: 01468123
Brand: Walter-Titex
Model #: 5062580
Features and Benefits
High speed steel (HSS) provides good wear-resistance and can be used in general purpose applications for both ferrous and nonferrous materials.
Bright provides a smooth, polished finish on the tool. It increases chip flow in softer materials such as aluminum, wood and plastic.
| Product Specifications | |
|---|---|
| Drill Bit Size (Inch) | 3/16 |
| Drill Bit Size (Decimal Inch) | 0.1875 |
| Drill Point Angle | 130 |
| Drill Bit Material | High Speed Steel |
| Drill Bit Finish/Coating | Bright |
| Overall Length (Inch) | 7-11/16 |
| Through Coolant | NonCoolant Through |
| Flute Length (Inch) | 5-5/16 |
| Cutting Direction | Right Hand |
| Flute Type | Parabolic |
| Number of Flutes | 2 |
| Point Type | Standard |
| Shank Type | Straight |
| Specification Designation | DIN |
| Threaded Shank | No |
| Web Configuration | Tapered |
| Drill Bit Diameter Tolerance (Decimal Inch) | -0.00071 to 0.00000 |
| Drill Bit Diameter Tolerance (mm) | -0.018 to 0.000 |
| Web Thinning | Web-Thinned |
| Drill Bit Grade | High Performance |
| Series/List | A1622 |
