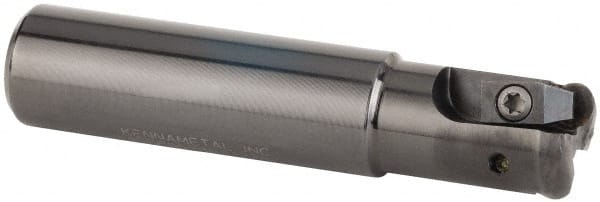

Kennametal - 15.88mm Cutting Diam, 5/8" Shank Diam, 5/8" Max Depth of Cut, Straight Shank Indexable Copy End Mill - 2 Inserts, RP.. 2150.. Insert, KIPR Toolholder, Through Coolant
Item #: 71135701
Brand: Kennametal
Model #: 3759533
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 15.88 |
| Cutting Diameter (Inch) | 5/8 |
| Cutting Diameter (Decimal Inch) | 0.6250 |
| Maximum Depth of Cut (mm) | 3.17 |
| Maximum Depth of Cut (Decimal Inch) | 0.1250 |
| Shank Type | Cylindrical |
| Shank Diameter (mm) | 15.88 |
| Shank Diameter (Inch) | 5/8 |
| Shank Diameter (Decimal Inch) | 0.6250 |
| Number of Cutter Inserts | 2 |
| Insert Style | RP.. 2150.. |
| Toolholder Style | KIPR |
| Series | KIPR |
| Overall Length (mm) | 74.93 |
| Overall Length (Decimal Inch) | 2.9500 |
| Insert Holding Method | Clamp |
| Through Coolant | Through Coolant |
| Weldon Flat | No |
| Number of Flutes | 2 |
| Minimum Cutting Diameter (mm) | 9.53 |
| Head Length (mm) | 25.93 |
| Head Length (Decimal Inch) | 1.0209 |
| Shank Length (mm) | 49.00 |
| Shank Length (Decimal Inch) | 1.9291 |
| Maximum RPM | 37400 |
| Maximum Cutting Diameter (Decimal Inch) | 0.6250 |
