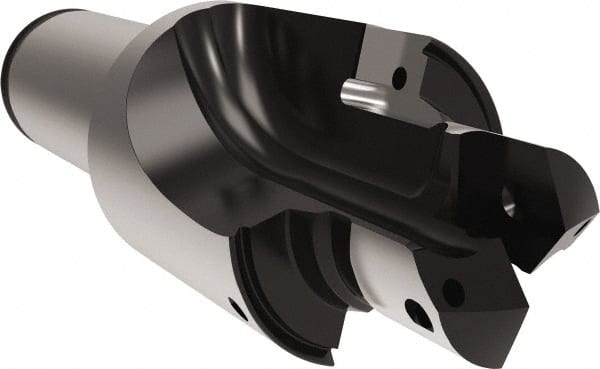

Allied Machine and Engineering - M18x1.50, 0.65" Pilot Diam, 1.181" Spotface Diam, 0.674" Pilot Length, Tube Dash 8, Indexable Porting Tool
Item #: 71153845
Brand: Allied Machine and Engineering
Model #: I6149-08R0-20FM
Product Specifications
| Port Standard Designation | ISO 6149-1:1993; SAE J2244-1 |
| Pilot Insert Type | Spade Blade Insert |
| Port Thread Size | M18x1.50 |
| Tube Dash Number | 8 |
| Pilot Diameter (Decimal Inch) | 0.6500 |
| Spotface Diameter (Decimal Inch) | 1.1810 |
| Pilot Length (Decimal Inch) | 0.6740 |
| Shank Diameter (Inch) | 0.7870 |
| Shank Diameter (Decimal Inch) | 0.7870 |
| Number of Porting Inserts | 2 |
| Porting Insert Style | I6149-06-C3H; I6149-06-C5A; I6149-06R-C3H; I6149-06R-C5A |
| Porting Diameter (Decimal Inch) | 0.7810 |
| Overall Length (Decimal Inch) | 3.6320 |
| Through Coolant | Through Coolant |
| Porting Angle | 15 |
| Porting Angle Length (Decimal Inch) | 0.1020 |
| Head Length (Decimal Inch) | 1.9820 |
| Shank Length (Decimal Inch) | 1.6500 |
| Spotface to Shoulder Length (Decimal Inch) | 1.1640 |
| Series | AccuPort 432 |
