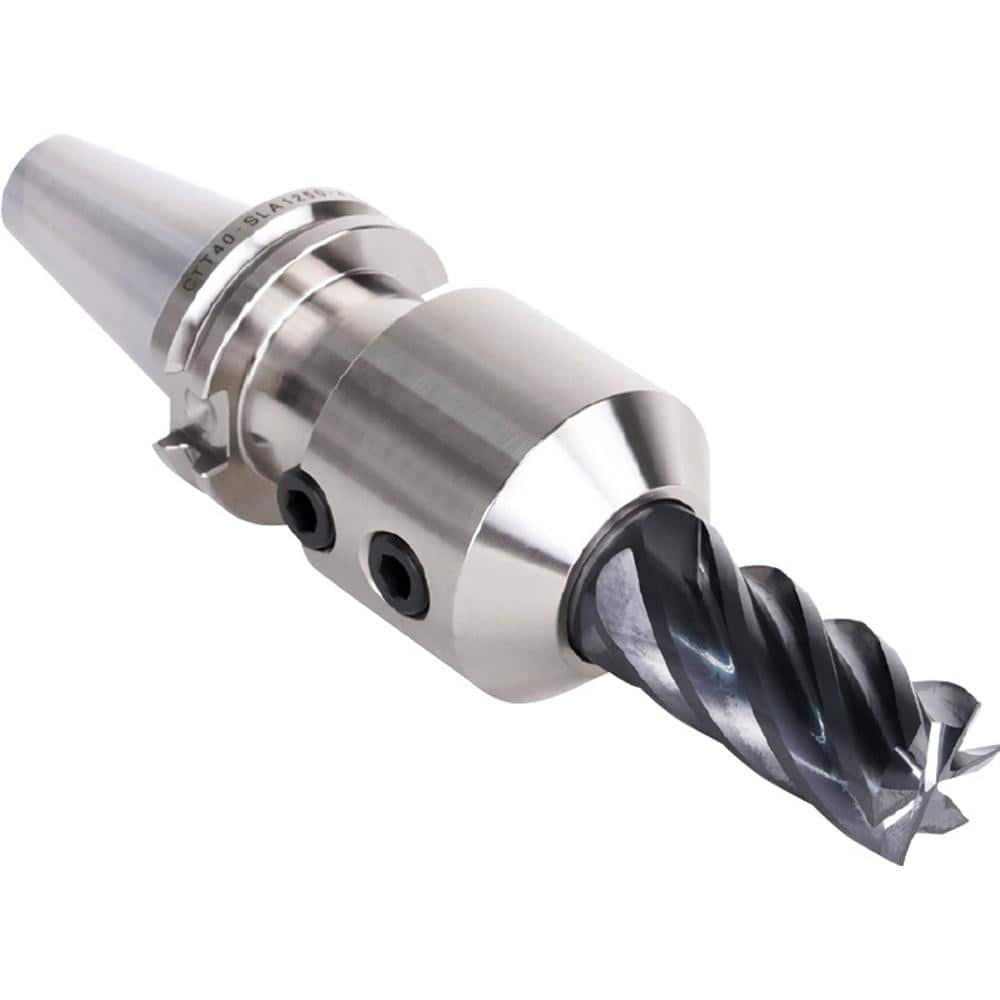

End Mill Holder: CAT40 Dual Contact Taper Shank, 1/2″ Hole 2.5″ Projection, 1-1/4″ Nose Dia
Item #: 71208276
Brand: Samchully
Model #: CTT40SLA0500250
Product Specifications
| Shank Type | Dual Contact Taper |
| Modular Connection Size | CTT40 |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Shank Diameter (Inch) | 1-1/4 |
| Overall Length (Decimal Inch) | 5.1900 |
| Taper Size | CAT40 |
| Hole Diameter (Decimal Inch) | 0.5000 |
| Hole Diameter (Inch) | 1/2 |
| Nose Diameter (Decimal Inch - 4 Decimals) | 1.2500 |
| Nose Diameter (Inch) | 1-1/4 |
| Projection (Inch) | 2-1/2 |
| Projection (Decimal Inch - 4 Decimals) | 2.5000 |
