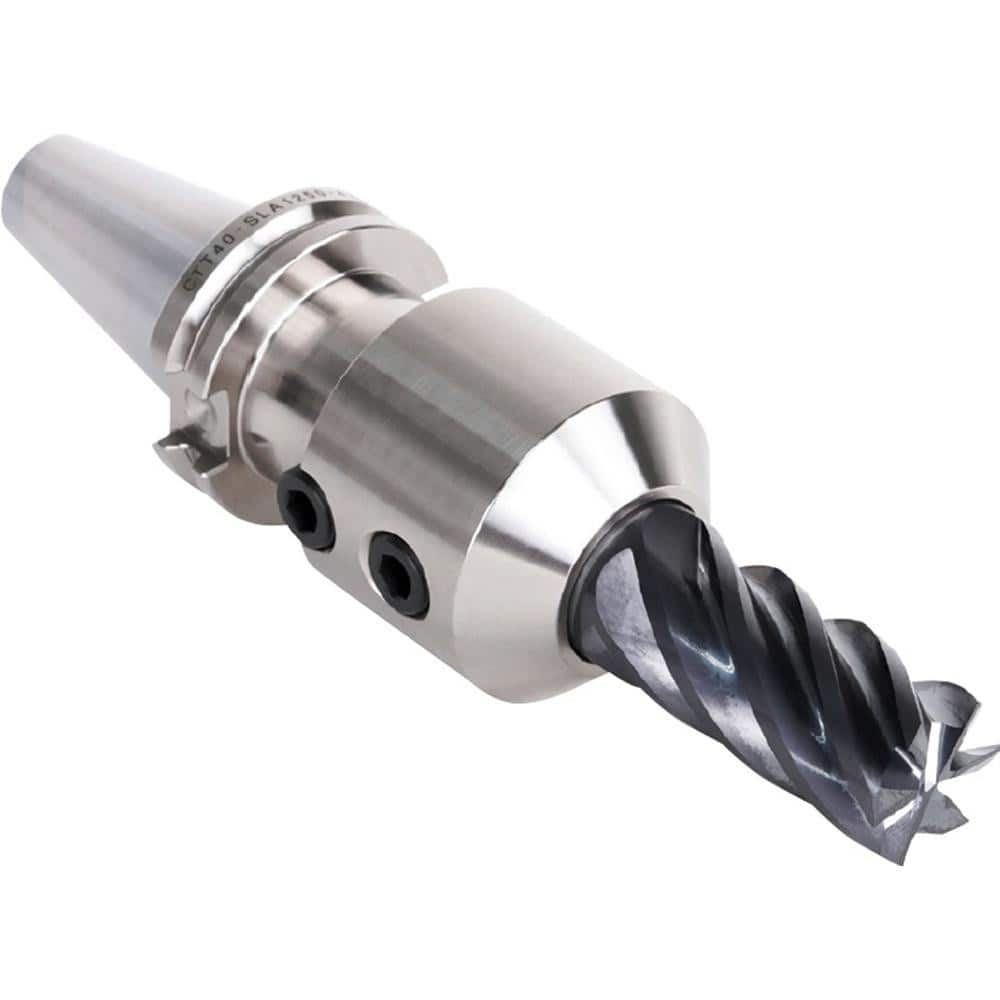

End Mill Holder: CAT40 Dual Contact Taper Shank, 3/8″ Hole 4″ Projection, 1″ Nose Dia
Item #: 71208300
Brand: Samchully
Model #: CTT40SLA0375400
Product Specifications
| Shank Type | Dual Contact Taper |
| Modular Connection Size | CTT40 |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Shank Diameter (Inch) | 1 |
| Overall Length (Decimal Inch) | 6.6900 |
| Taper Size | CAT40 |
| Hole Diameter (Decimal Inch) | 0.3750 |
| Hole Diameter (Inch) | 3/8 |
| Nose Diameter (Decimal Inch - 4 Decimals) | 1.0000 |
| Nose Diameter (Inch) | 1 |
| Projection (Inch) | 4 |
| Projection (Decimal Inch - 4 Decimals) | 4.0000 |
