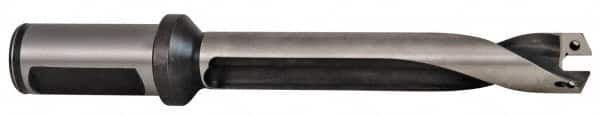

Allied Machine and Engineering - Series 22, 0.8661 to 0.9448" Diam, 1" Diam Straight Shank with Flange, Helical Flute Spade Drill - 2-53/64" Max Depth, 4-9/64" Body Length, 6-27/64" OAL, Standard Length
Item #: 71293385
Brand: Allied Machine and Engineering
Model #: 60322H-100F
Exact Tooling IR#: 04
Features and Benefits
Helical flutes are used for vertical machining center applications.
| Product Specifications | |
|---|---|
| Series | 22 |
| Minimum Drill Diameter (Decimal Inch) | 0.8661 |
| Maximum Drill Diameter (Decimal Inch) | 0.9448 |
| Shank Type | Straight Shank with Flange |
| Shank Diameter (Inch) | 1 |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Spade Drill Length | Standard Length |
| Overall Length (Inch) | 6-27/64 |
| Drill Depth by Diameter Ratio | 3xD |
| Maximum Drill Depth (Inch) | 2-53/64 |
| Maximum Drill Depth (Decimal Inch) | 2.8280 |
| Flute Type | Helical Flute |
| Flute Length (Inch) | 4-9/64 |
| Body Length (Inch) | 4-9/64 |
| Shank Length (Inch) | 2-9/32 |
| Shank Length (Decimal Inch) | 2.2810 |
| Shank End Coolant Hole Thread Size (Inch) | 1/8 |
