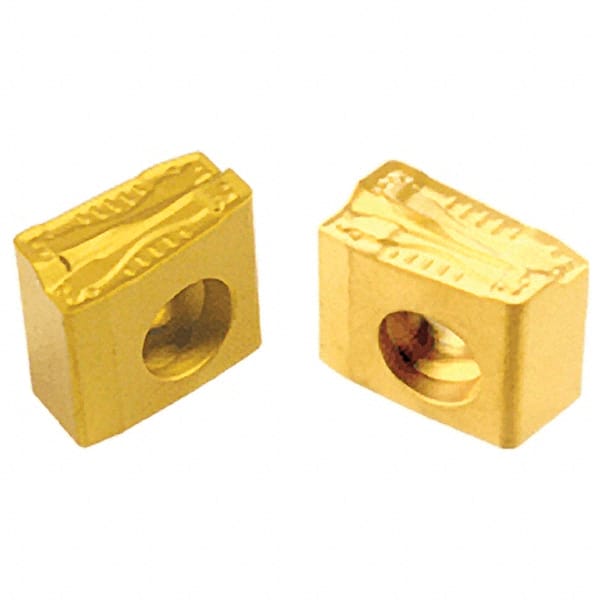

Iscar - LNMX1608 HF Grade IC9150 Carbide Turning Insert - TiCN/Al2O3/TiN Finish, 90° Rectangle, 8.5mm Thick, 3/64" Corner Radius
Item #: 71302764
Brand: Iscar
Model #: 5508500
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | LNMX |
| Insert Size | 1608 |
| Material | Carbide |
| Length (mm) | 16.00 |
| Length (Decimal Inch) | 0.6300 |
| Thickness (Decimal Inch) | 0.3346 |
| Thickness (mm) | 8.50 |
| Corner Radius (Inch) | 3/64 |
| Corner Radius (Decimal Inch) | 0.0472 |
| Manufacturer's Grade | IC9150 |
| Coating | TiCN/Al2O3/TiN |
| Chip Breaker | HF |
| Relief Angle | 0 |
| Coating Process | CVD |
| Included Angle | 90 |
| Cutting Direction | Left Hand |
| Series | FeedTurn |
| Maximum Depth of Cut (mm) | 2.40 |
| Maximum Depth of Cut (Decimal Inch) | 0.0945 |
| Insert Holding Method | Screw |
| Shape | Rectangle |
