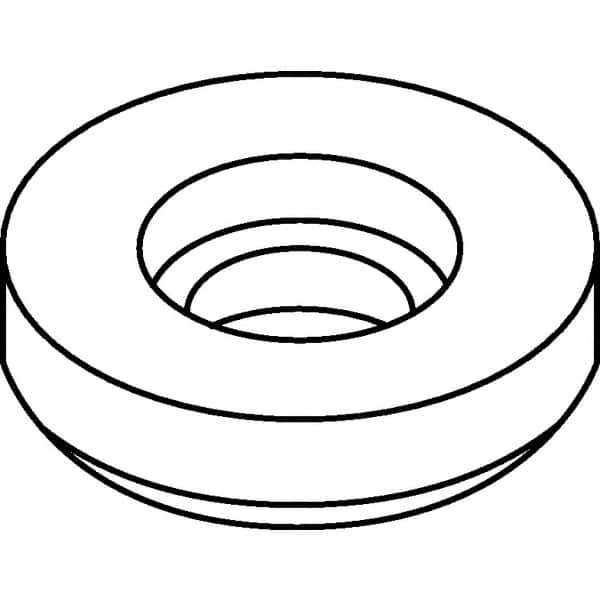

Kennametal - 1/2" Inscribed Circle, Round Boring Bar & Turning Shim for Indexables - Ceramic, 0.312" Thick, Negative Rake, Left Hand, Right Hand Cut
Item #: 71344923
Brand: Kennametal
Model #: 1121313
Exact Tooling IR#: 04
Features and Benefits
Ceramic is a highly heat resistant material composed of aluminum oxide and silicon nitride. It is commonly used at high speeds on steel, cast and ductile iron and high temperature alloys.
| Product Specifications | |
|---|---|
| Indexable Tool Type | Boring Bar; Turning |
| Shape | Round |
| Rake | Negative |
| Insert Inscribed Circle (Inch) | 1/2 |
| Insert Inscribed Circle (Decimal Inch) | 0.5000 |
| Thickness (Decimal Inch) | 0.3120 |
| Complete Toolholder Compatibility | CRSNL2525M12-MN4; CRSNL3225P12-MN4; CRSNR2525M12-MN4; CRSNR3225P12-MN4 |
| Cutting Direction | Left Hand; Right Hand |
| Material | Ceramic |
| Type | Shim |
