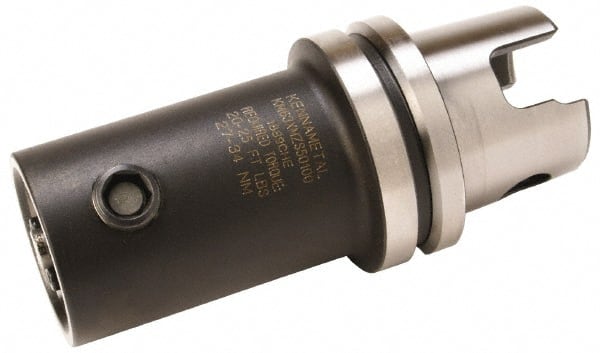

Kennametal - KM80ATC Outside Modular Connection, KM50 Inside Modular Connection, KM80 to KM50 Reducing Adapter - 80.01mm Projection, 50.01mm Nose Diam, 125.02mm OAL, Through Coolant
Item #: 71345789
Brand: Kennametal
Model #: 2024397
Exact Tooling IR#: 04
Features and Benefits
Reducing adapters are used with smaller taper shank toolholders and in machine spindles with larger tapers.
| Product Specifications | |
|---|---|
| Type | Reducing Adapter |
| Taper Adapter Type | KM80 to KM50 |
| Outside Modular Connection Size | KM80ATC |
| Inside Modular Connection Size | KM50 |
| Projection (Decimal Inch) | 3.1500 |
| Projection (mm) | 80.01 |
| Through Coolant | Yes |
| Nose Diameter (Decimal Inch) | 1.9690 |
| Nose Diameter (mm) | 50.01 |
| Overall Length (mm) | 125.02 |
| Overall Length (Decimal Inch) | 4.9220 |
