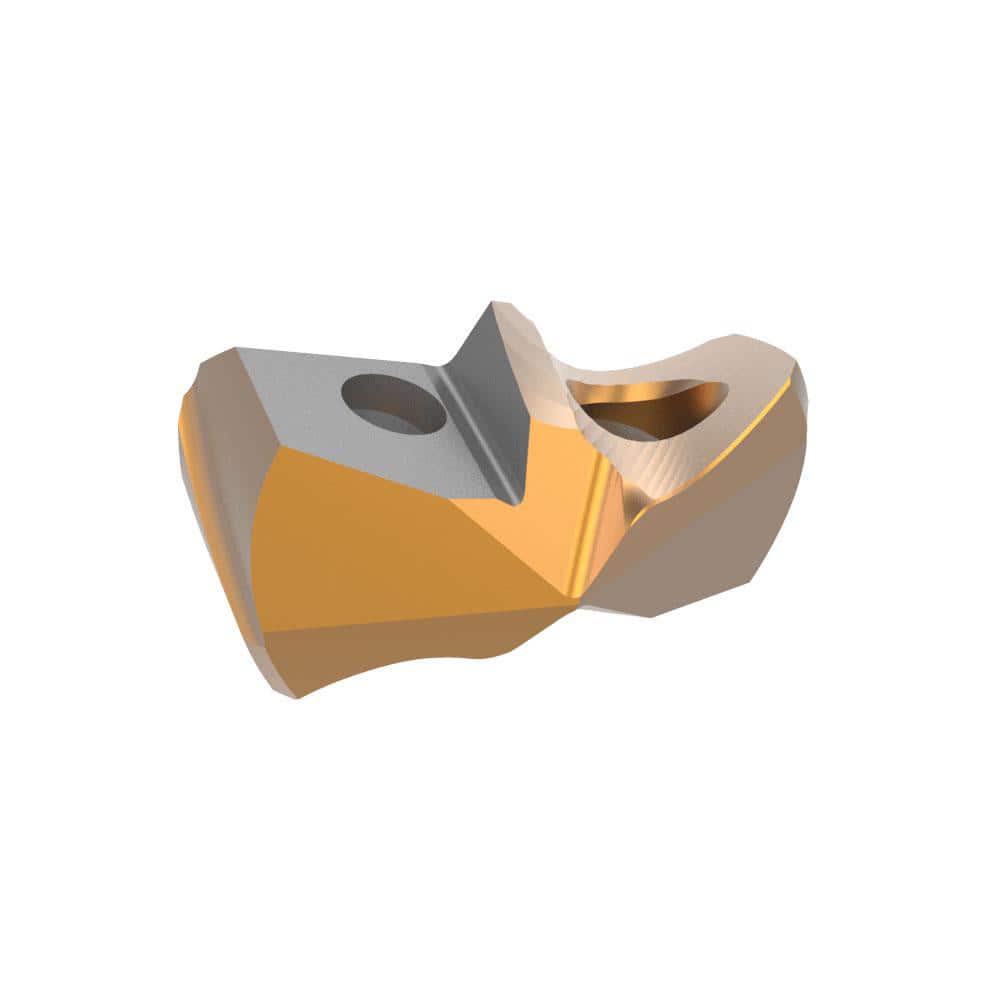

Spade Drill Insert: 0.7677″ Dia, Series 18, Solid Carbide, 140 ° Point AM300 Finish, Series GEN3SYS XT
Item #: 71366314
Brand: Allied Machine and Engineering
Model #: 7C218P-19.5AS
Product Specifications
| Diameter (mm) | 19.50 |
| Diameter (Decimal Inch) | 0.7677 |
| Series Code/Seat Size | 18 |
| Point Angle | 140 |
| Insert Material | Solid Carbide |
| Included Angle Degree | 140 |
| Manufacturer Grade | K20 |
| Spade Drill Insert Diameter Range (mm) | 15.00 to 20.00 |
| Drill Diameter Range (Decimal Inch) | 0.7500 to 1.0000 |
| Series | GEN3SYS XT |
| Primary Workpiece Material Code | S; K; M; N |
| Material Grade | C2 |
| Coating/Finish | AM300 |
