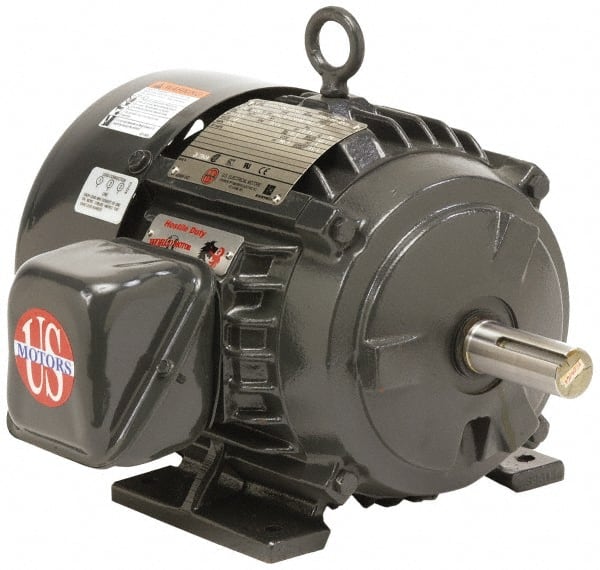

US Motors - 10 hp, Totally Enclosed Fan Cooled, No Thermal Protection, 1,180 RPM, 208-230/460 Volt, 50/60 Hz, Three Phase Motor - Size 256T Frame, Rigid Mount, 1 Speed, Ball Bearings, 27.1-24.6/12.3 Full Load Amps, F Class Insulation
Item #: 71379655
Brand: US Motors
Model #: H10P3D
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Motor Type | Three Phase |
| Type of Enclosure | Totally Enclosed Fan Cooled |
| Horsepower | 10 |
| Thermal Protection Rating | None |
| Name Plate RPMs | 1180 |
| Voltage | 208-230/460 |
| Frequency Hz | 50/60 |
| Frame Size | 256T |
| Mount Type | Rigid |
| Number of Speeds | 1 |
| Bearing Type | Ball |
| Applications | General Purpose |
| Full Load Amperage | 27.1-24.6/12.3 |
| Insulation Class | F |
| Service Factor Rating | 1.15 |
| PSC Code | 6105 |
