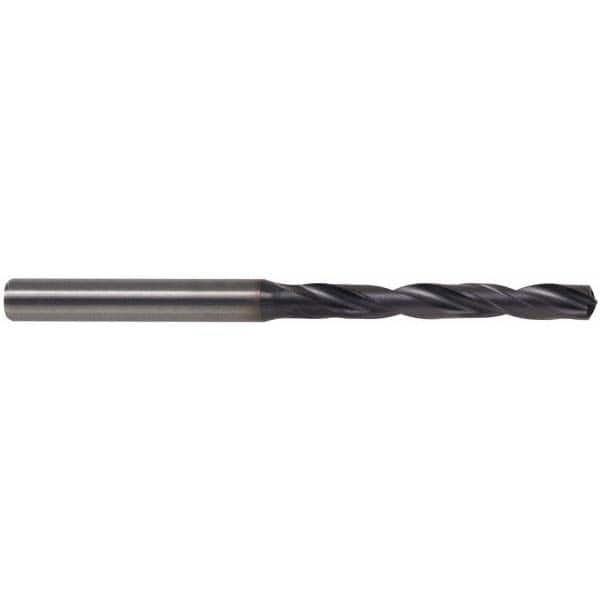

Kennametal - 4.3mm 140° Point TiAlN Finish Solid Carbide Jobber Drill
Item #: 71446389
Brand: Kennametal
Model #: 3640745
Product Specifications
| Drill Bit Size (mm) | 4.30 |
| Drill Bit Size (Decimal Inch) | 0.1693 |
| Drill Point Angle | 140 |
| Drill Bit Material | Solid Carbide |
| Drill Bit Finish/Coating | TiAlN |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Shank Type | Straight |
| Coolant Through | Coolant Through |
| Flute Length (mm) | 36.00 |
| Overall Length (mm) | 74.00 |
| Flute Length x Diameter Ratio | 5xD |
| Point Type | Standard |
| Shank Diameter (mm) | 6.00 |
| Shank Diameter (Inch) | 15/64 |
| Maximum Drilling Depth (mm) | 29.00 |
| Spiral Type | Regular Spiral |
| Shank Length (mm) | 36.00 |
| Specification Designation | DIN |
| Drill Point Length (mm) | 0.80 |
| Web Configuration | Tapered |
| Drill Bit Diameter Tolerance (mm) | 0.004 to 0.016 |
| Number of Flutes | 2 |
| Web Thinning | Web-Thinned |
| Specification Number | DIN 6537K |
| Drill Bit Grade | High Performance |
| Series/List | B292A |
