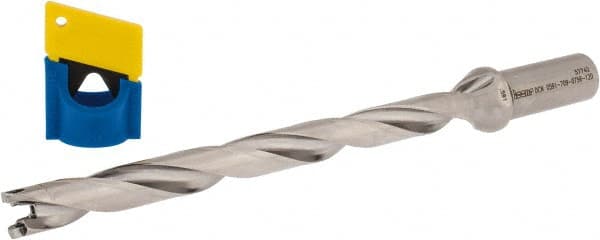

Iscar - 0.591" to 5/8" Diam, 12xD, 7.09" Max Depth, 3/4" Shank Diam, 10" OAL, Replaceable-Tip Drill - FCP, ICK, ICK-2M, ICM, ICN, ICP, iCP-2M Insert, 15 Seat Size, 71469803 Toolholder, Series SumoCham
Item #: 71469803
Brand: Iscar
Model #: 3202831
Exact Tooling IR#: 04
Features and Benefits
Straight shanks are used for general purpose machining and commonly have a larger diameter than taper shanks.
| Product Specifications | |
|---|---|
| Series | SumoCham |
| Minimum Drill Diameter (Decimal Inch) | 0.5910 |
| Maximum Drill Diameter (Decimal Inch) | 0.6260 |
| Drill Depth by Diameter Ratio | 12xD |
| Maximum Drill Depth (Decimal Inch) | 7.0900 |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Insert Style | FCP; ICK; ICK-2M; ICM; ICN; ICP; iCP-2M |
| Insert Seat Size | 15 |
| Toolholder Style | DCN |
| Through Coolant | Through Coolant |
| Shank Type | Straight Shank |
| Body Length (Decimal Inch) | 8.0200 |
| Overall Length (Decimal Inch) | 9.9900 |
| Shank Length (Decimal Inch) | 1.9700 |
