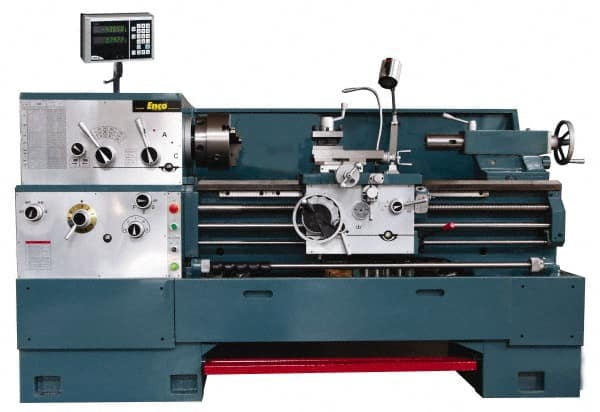

Toolroom Lathe: 18″ Swing, 80″, Geared Head 3-1/8″ Spindle Bore Dia, D1-8, 25 to 1,800 RPM, 3 Phase, 230/460V
Item #: 71485809
Brand: Value Collection
Model #: 328-1314 F2AX
Product Specifications
| Phase | 3 |
| Spindle Speed Control | Geared Head |
| Bed Width (Inch) | 18.0000 |
| Bed Width (Inch) | 18 |
| Bed Width | 18.0 in |
| Distance Between Centers (Inch) | 80 |
| Distance Between Centers | 80 in |
| Cross Slide Travel | 75.0 in |
| Gap Length (Decimal Inch) | 12.2500 |
| Gap Length | 12.25 in |
| Cross Slide Travel (Inch) | 75 |
| Swing | 18 in |
| Cross Slide Travel (Decimal Inch) | 75.0000 |
| Swing (Inch) | 18 |
| Spindle Bore Diameter (Inch) | 3-1/8 |
| Minimum Spindle Speed | 25 |
| Spindle Nose Designation | D1-8 |
| Voltage | 230/460 |
| Maximum Spindle Speed | 1800 |
| Overall Height | 48.8750 in |
| Overall Depth | 40 in; 40.0 in |
| Minimum Metric Pitch (Decimal Inch) | 0.0020 |
| Maximum Metric Pitch (Decimal Inch) | 0.7874 |
| Number of Inch Threads | 61 |
| Minimum Metric Pitch | 0.002 in |
| Maximum Metric Pitch | 0.7874 in |
| Number of Metric Threads | 24 |
| Spindle Taper Size | 7MT |
| Tailstock Taper Size | 5MT |
| Top Slide Travel (Decimal Inch) | 5.0000 |
| Minimum Threads Per Inch | 1-5/8 |
| Number of Spindle Speeds | 12 |
| Maximum Threads Per Inch | 72 |
| Min. Longitudinal Feed Per Rev. (Decimal Inch) | 0.0015 |
| Overall Height (Inch) | 48-7/8 |
| Overall Depth (Inch) | 40 |
| Overall Depth (Inch) | 40.0000 |
| Overall Length (Decimal Inch) | 136.1250 |
| Overall Length (Inch) | 136-1/8 |
| Minimum Longitudinal Feed Per Revolution | 0.0015 in |
| Max. Longitudinal Feed Per Rev. (Decimal Inch) | 0.0913 |
| Maximum Longitudinal Feed Per Revolution | 0.0913 in |
| Minimum Cross Feed Rate Per Revolution (mm) | 0.0006 |
| Minimum Cross Feed Rate Per Revolution | 0.0006 in |
| Min. Cross Feed Rate Per Revolution (Decimal Inch) | 0.000600 |
| Max. Cross Feed Rate Per Revolution (Decimal Inch) | 0.0365 |
| Maximum Cross Feed Rate Per Revolution | 0.0365 in |
| Swing Over Cross Slide (Decimal Inch) | 11.0000 |
| Swing Over Cross Slide (Inch) | 11 |
| Swing Over Cross Slide | 11 in; 11.0 in |
| Swing Over Gap (Inch) | 27-1/2 |
| Swing Over Gap (Decimal Inch) | 27.5000 |
| Swing Over Gap | 27.5 in |
| Number Of Spindle Speeds | 12 |
| Machine Type | Engine Lathe |
| Shipping Weight | 6420 |
 | |
| MSC Part # | 71485809 |
| Mfr Part # | 328-1314 F2AX |
