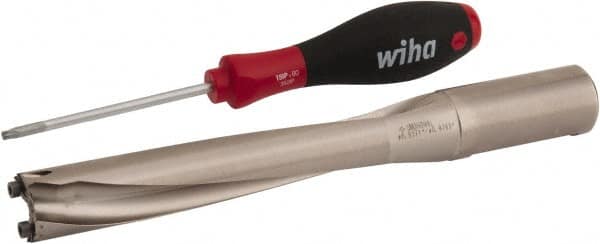

Sumitomo - 23.81 to 24.8mm Diam, 5xD, 5.315" Max Depth, 1" Shank Diam, 6.411" Flute, 8.661" OAL, Replaceable Tip Drill - Series SMD
Item #: 71524474
Brand: Sumitomo
Model #: 5L00W15
Exact Tooling IR#: 04
Features and Benefits
Weldon flats are designed with a set screw that secures the tool for increased torque and reduced slipping. The diameters are typically different from the diameter of the cutting part of the tool.
| Product Specifications | |
|---|---|
| Series | SMD |
| Minimum Drill Diameter (mm) | 23.81 |
| Minimum Drill Diameter (Decimal Inch) | 0.9374 |
| Maximum Drill Diameter (mm) | 24.80 |
| Maximum Drill Diameter (Decimal Inch) | 0.9764 |
| Drill Depth by Diameter Ratio | 5xD |
| Maximum Drill Depth (Decimal Inch) | 5.3150 |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Through Coolant | Through Coolant |
| Shank Type | Weldon Flat |
| Flute Length (Decimal Inch) | 6.4110 |
| Body Length (Decimal Inch) | 6.4110 |
| Overall Length (Decimal Inch) | 8.6610 |
| Toolholder Material | Steel |
| Shank Length (Decimal Inch) | 2.2500 |
