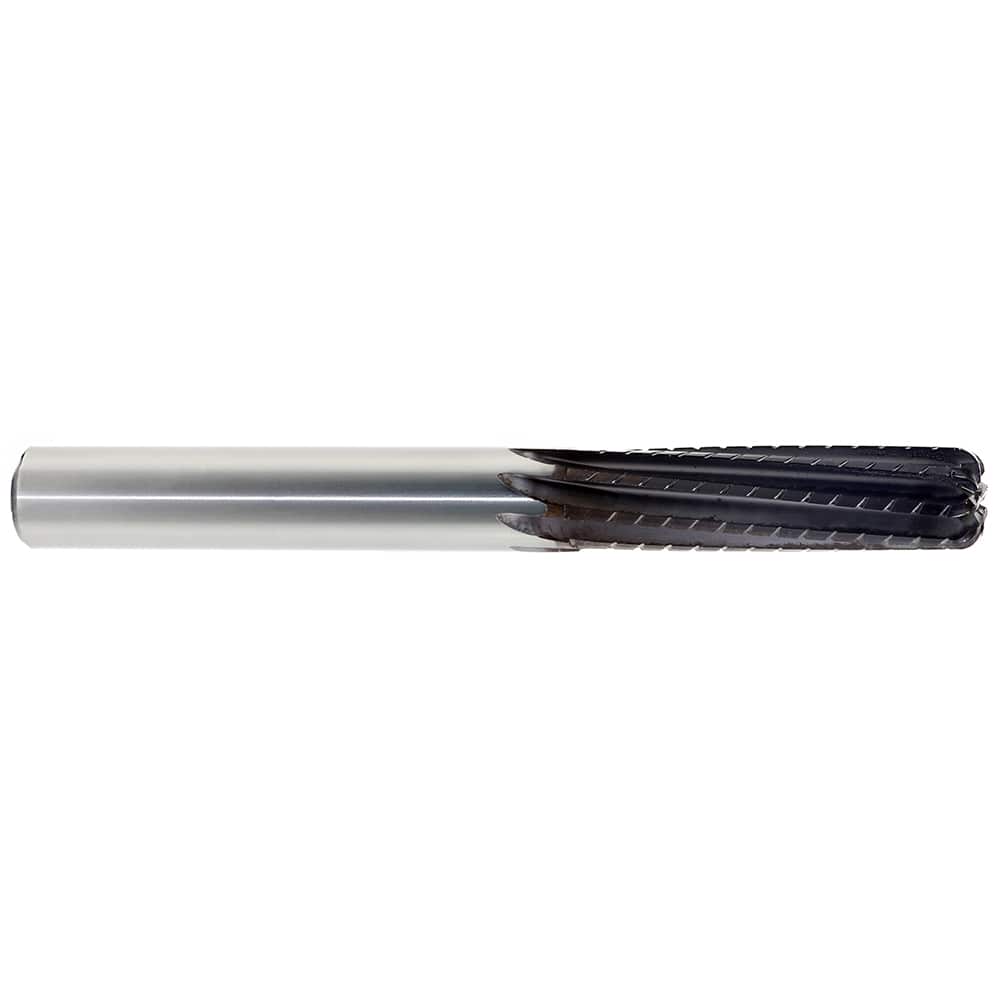

Mapal - Spiral Router Bits Cutting Diameter (mm): 6.00 Number of Flutes: 8
Item #: 13359898
Brand: Mapal
Model #: 30869173
Features and Benefits
Solid carbide is used for high performace applications. It is extremely heat resistant and used on cast iron, non-ferrous metals and other tough to machine materials.
End Mill router bits are used for bottom cutting and are designed to produce a smooth surface with a square corner
Diamond (PCD) coating is one of the hardest coatings. It is commonly used on concrete, fiberglass, plastic, stone, aluminum alloy and extremely difficult-to-machine materials.
Product Specifications
Spiral Router Bits; Cutting Diameter (mm): 6.00 ; Number of Flutes: 8 ; Flute Type: Spiral ; Cutting Direction: Right Hand ; Material Application: Aramid; Carbon Fiber; Duroplast; Foam; Glass Fiber Reinforced Polymer; Honeycomb Core; Plastic ; Material: Solid Carbide
| Cutting Diameter (mm) | 6.00 |
| Number of Flutes | 8 |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Material Application | Aramid; Carbon Fiber; Duroplast; Foam; Glass Fiber Reinforced Polymer; Honeycomb Core; Plastic |
| Material | Solid Carbide |
| Length of Cut (mm) | 20.00 |
| Shank Diameter (mm) | 6.00 |
| Overall Length (mm) | 60.00 |
| End Type | End Mill |
| Finish/Coating | Diamond |
| Coating | Diamond |
