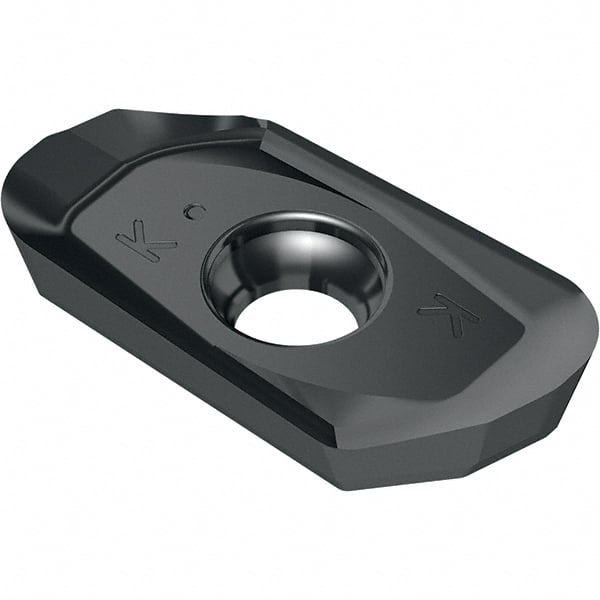

Walter - ZDGT200530 K85 Grade WK10 Carbide Milling Insert - Uncoated, 0.2189" Thick, 3mm Corner Radius
Item #: 71719363
Brand: Walter
Model #: 5004899
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | ZDGT |
| Insert Size | 200530 |
| Material | Carbide |
| Material Grade | N10 |
| Manufacturer's Grade | WK10 |
| Coating | Uncoated |
| Width (Decimal Inch) | 0.5512 |
| Length (Decimal Inch) | 0.8346 |
| Thickness (Decimal Inch) | 0.2189 |
| Corner Radius (Decimal Inch) | 0.1181 |
| Corner Radius (mm) | 3.00 |
| Rake | Positive |
| Shape | Parallelogram |
| Insert Hand | Right Hand |
| Chipbreaker | K85 |
| Manufacturers Catalog Number | ZDGT200530R-K85 |
