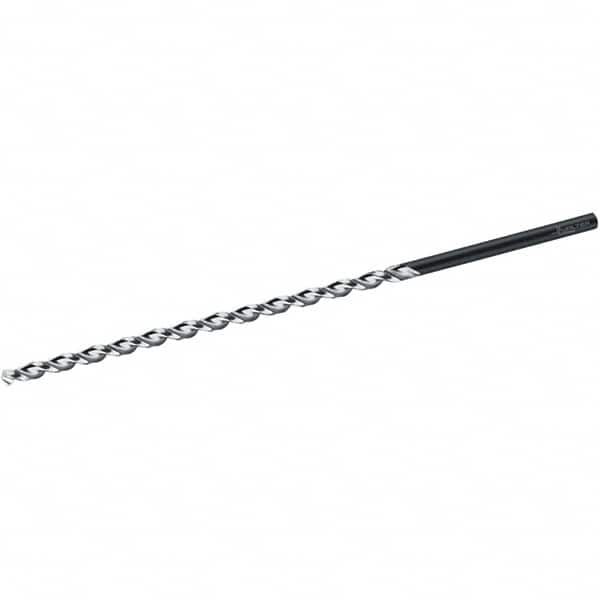

Walter-Titex - 6.5mm 2-Flute High Speed Steel Extra Length Drill Bit
Item #: 36385029
Brand: Walter-Titex
Model #: 5062697
Features and Benefits
High speed steel (HSS) provides good wear-resistance and can be used in general purpose applications for both ferrous and nonferrous materials.
Oxide prevents chip building, galling and welding on the workpiece. It is commonly used on low carbons, stainless steel and ferrous metals.
| Product Specifications | |
|---|---|
| Drill Bit Size (mm) | 6.50 |
| Drill Bit Size (Decimal Inch) | 0.2559 |
| Drill Bit Material | High Speed Steel |
| Drill Bit Finish/Coating | Oxide |
| Overall Length (mm) | 500.00 |
| Through Coolant | NonCoolant Through |
| Shank Diameter (Decimal Inch) | 0.2559 |
| Shank Diameter (mm) | 6.50 |
| Flute Length (mm) | 400.00 |
| Flute Length (Decimal Inch) | 15.7480 |
| Cutting Direction | Right Hand |
| Flute Length x Diameter Ratio | 60xD |
| Flute Type | Parabolic |
| Number of Flutes | 2 |
| Point Type | UFL |
| Shank Type | Straight |
| Maximum Drilling Depth (mm) | 389.00 |
| Maximum Drilling Depth (Decimal Inch) | 15.3150 |
| Specification Designation | DIN |
| Shank Length (Decimal Inch) | 3.9370 |
| Shank Length (mm) | 100.00 |
| Threaded Shank | No |
| Web Configuration | Tapered |
| Drill Bit Diameter Tolerance (mm) | h8 |
| Web Thinning | Web-Thinned |
| Material Grade | M2 |
| Series/List | A1922S |
