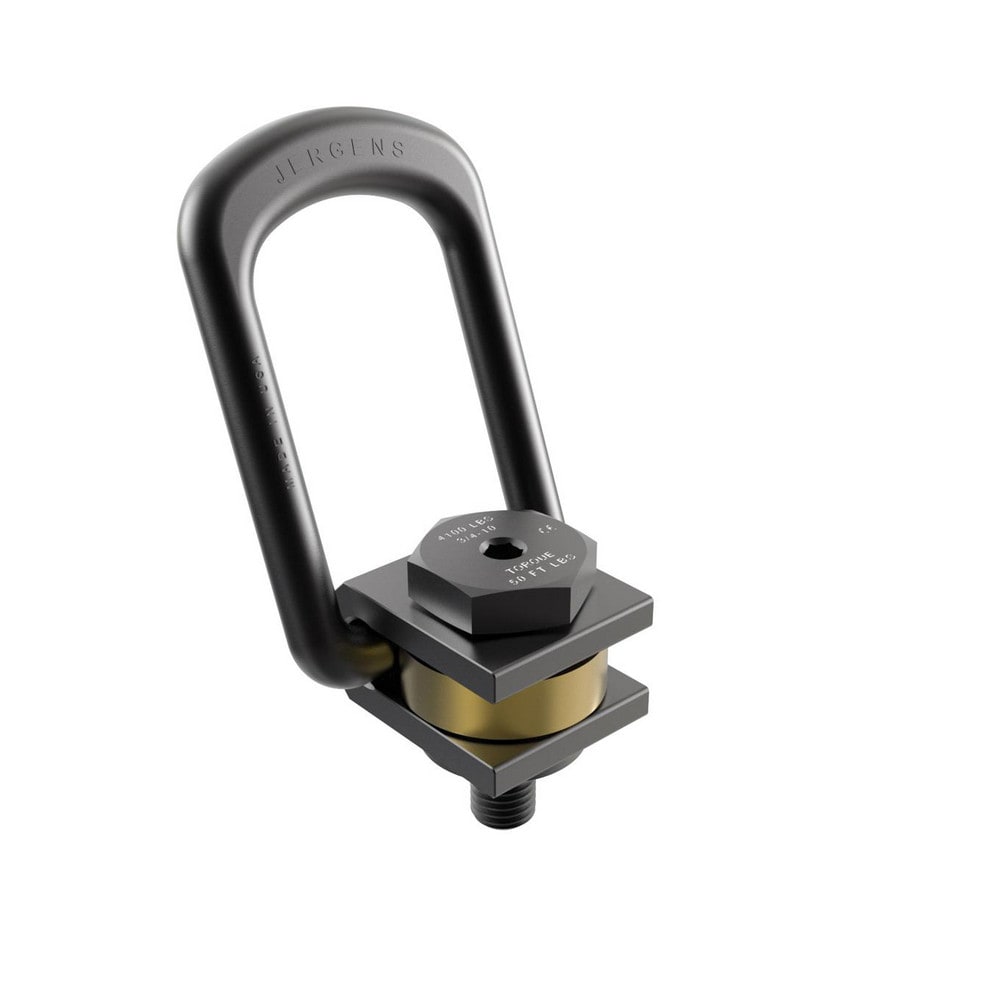

Side Pull Hoist Ring: Bolt-On, 14000 lb Capacity, 360°
Item #: 86789187
Brand: Jergens
Model #: 47537
Product Specifications
| Hoist Ring Type | Side Pull |
| Load Capacity (Lbs) | 14000 |
| Thread Size | 1-1/4-7 |
| Radius (mm) | 76 |
| Radius (Decimal Inch) | 3 |
| Ring Height (Decimal Inch) | 10.4375 |
| Material | Alloy Steel |
| Ring Thickness (mm) | 27 |
| Ring External Width (Inch) | 6.5 |
| Ring External Width (mm) | 165 |
| Ring Internal Width (mm) | 111 |
| Ring Internal Width (Inch) | 4.375 |
| Movement Type | 360° |
| Finish | Black Oxide |
| Material Grade | Alloy Steel |
| Mount Type | Bolt-On |
| Number Of Mounting Holes | 1 |
| Fabrication | Forged |
| Standards | ASTM E1444 |
| Ring Opening (Decimal Inch) | 7.69 |
| Ring Outside Diameter (Decimal Inch) | 6.5 |
| Ring Width (mm) | 165 |
| UNSPSC Code | 24101600 |
| Ring Width (Inch) | 6-1/2 |
| Hex Size (Inch) | 3/4 |
| Ring Width (Decimal Inch) | 6.5 |
| Mounting Surface Diameter (Decimal Inch) | 3.25 |
| Clevis Height (mm) | 90 |
| Head/Holder Diameter (Fractional Inch) | 3-3/4 |
| Clevis Width (Inch) | 3-3/4 |
| Mounting Surface Diameter (mm) | 83 |
| Clevis Height (Inch) | 3-9/16 |
| Clevis Width (mm) | 95 |
| Ring Opening (mm) | 196 |
| Country of Origin | UNITED STATES |
