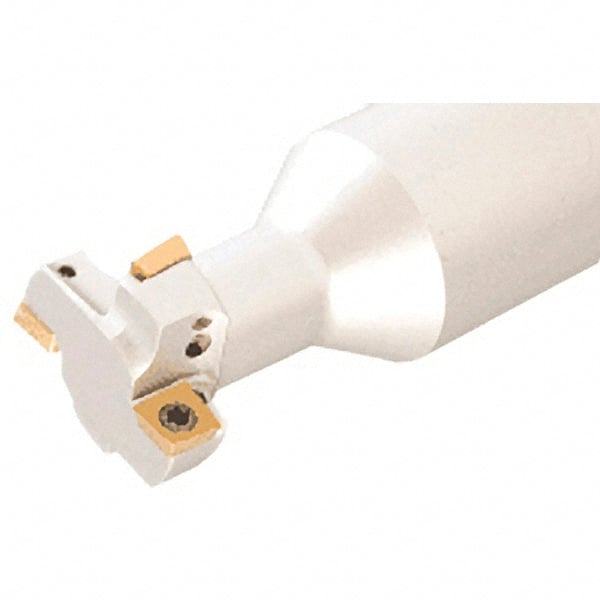

Iscar - 1-1/4" Cutting Diam x 0.7087" Cutting Width, 4 Cutter Inserts, 0.6299" Shank Diam, Indexable T-Slot Cutter - Insert Style XPMT-HQ, 3.5433" OAL
Item #: 71791263
Brand: Iscar
Model #: 3100691
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 1.2480 |
| Cutting Width (Decimal Inch) | 0.7087 |
| Shank Diameter (Decimal Inch) | 0.6299 |
| Toolholder Style | ETS |
| Number of Cutter Inserts | 4 |
| Insert Style | XPMT-HQ |
| Neck Diameter (Decimal Inch) | 0.6299 |
| Overall Length (Decimal Inch) | 3.5433 |
| Maximum Reach (Decimal Inch) | 2.0472 |
| Weldon Flat | Yes |
| Complete Insert Compatibility | XPMT 100408-HQ; XPMT 100408T-HQ |
