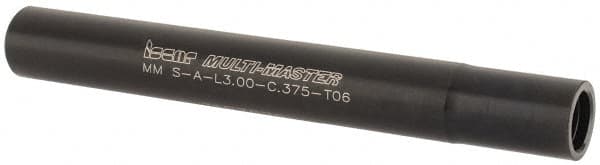

Iscar - Multimaster 3/8" 90° Stepped Shank Milling Tip Insert Holder & Shank - 0.364" Neck Diam, T06 Neck Thread, 3" OAL, Steel MM S-A Tool Holder
Item #: 71902431
Brand: Iscar
Model #: 3102472
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | Multimaster |
| Shank Type | 90 Degree Stepped Shank |
| Shank Diameter (Inch) | 3/8 |
| Shank Diameter (Decimal Inch) | 0.3750 |
| Neck Diameter (Decimal Inch) | 0.3640 |
| Neck Thread Size | T06 |
| Toolholder Material | Steel |
| Overall Length (Decimal Inch) | 3.0000 |
| Through Coolant | Through Coolant |
| Weldon Flat | No |
| Head Length (Decimal Inch) | 0.5100 |
| Effective Length (Decimal Inch) | 0.5900 |
| Shank Shape | Straight |
| Toolholder Style | MM S-A |
