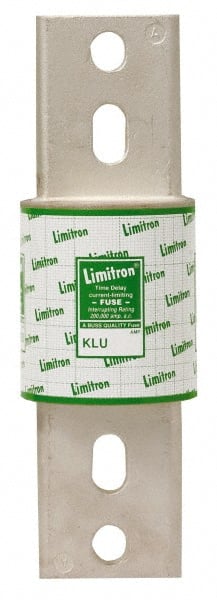

Cooper Bussmann - 600 VAC, 800 Amp, Time Delay General Purpose Fuse - Fuse Holder Mount, 8-5/8" OAL, 200 at AC (RMS) kA Rating, 2-1/2" Diam
Item #: 71918197
Brand: Cooper Bussmann
Model #: KLU-800
Exact Tooling IR#: 04
Features and Benefits
General purpose or class H non-renewable cartridge fuse have a single element and two cylindrical end caps designed for disposable, one-time use
Time delay fuses, also known as duel-element fuses, are designed to allow for a surge in electricity during a short time before overloading or shorting out. They can protect equipment from overload and allow for greater starting amperage.
| Product Specifications | |
|---|---|
| Fuse Type | General Purpose |
| Fuse Class | L |
| Amperage | 800 |
| Voltage | 600 VAC |
| Fuse Timing | Time Delay |
| Fuse Body Type | Cartridge |
| Overall Length (Inch) | 8-5/8 |
| Overall Length (Decimal Inch) | 8.6300 |
| Overall Diameter (Inch) | 2-1/2 |
| Overall Diameter (Decimal Inch) | 2-1/2 |
| Mounting Type | Fuse Holder |
| Interrupting Rating (kA) | 200 @ AC (RMS) |
| Standards Met | CE Certified; CSA C22.2 No. 248.10 Class 1422-02 File 53787 Certified; RoHS Compliant; UL Listed 248-10 Guide JDDZ File E4273 |
