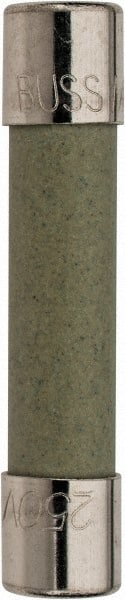

Cooper Bussmann - 250 VAC, 0.1 Amp, Time Delay Miniature Ceramic Fuse - 1-1/4" OAL, 1/4" Diam
Item #: 71918460
Brand: Cooper Bussmann
Model #: MDA-1-10-R
Exact Tooling IR#: 04
Features and Benefits
Miniature ceramic fuses are constructed of a conductive metal placed on a small ceramic body. They are more durable than glass bodies and are commonly used in appliances and electronics.
Time delay fuses, also known as duel-element fuses, are designed to allow for a surge in electricity during a short time before overloading or shorting out. They can protect equipment from overload and allow for greater starting amperage.
| Product Specifications | |
|---|---|
| Fuse Type | Miniature Ceramic |
| Amperage | 0.10 |
| Voltage | 250 VAC |
| Fuse Timing | Time Delay |
| Fuse Body Type | Cartridge |
| Overall Length (mm) | 31-3/4 |
| Overall Length (Inch) | 1-1/4 |
| Overall Length (Decimal Inch) | 1.2500 |
| Overall Diameter (mm) | 6.35 |
| Overall Diameter (Inch) | 1/4 |
| Overall Diameter (Decimal Inch) | 1/4 |
| Material | Ceramic |
| Interrupting Rating (A) | 35 @ AC |
| Standards Met | CSA Class 1422-01 Certified; MIL-STD-202 Method 213 RoHS Compliant; UL Listed Guide JDYX File E19180 |
