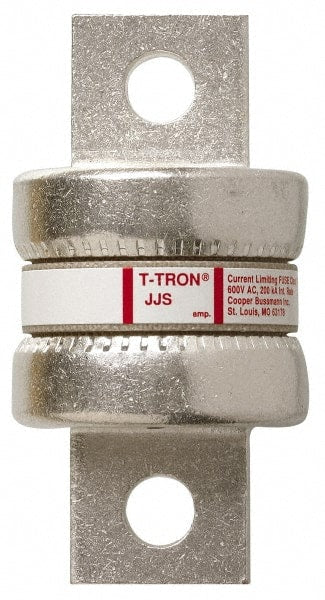

Cooper Bussmann - 600 VAC, 800 Amp, Fast-Acting General Purpose Fuse - Bolt-on Mount, 4-21/64" OAL, 200 at AC (RMS) kA Rating, 44.5mm Diam
Item #: 71922298
Brand: Cooper Bussmann
Model #: JJS-800
Exact Tooling IR#: 04
Features and Benefits
General purpose or class H non-renewable cartridge fuse have a single element and two cylindrical end caps designed for disposable, one-time use
Fast acting fuses refer to the amount of time that a fuse can withstand a current before overload. They are used to protect sensitive equipment.
| Product Specifications | |
|---|---|
| Fuse Type | General Purpose |
| Fuse Class | T |
| Amperage | 800 |
| Voltage | 600 VAC |
| Fuse Timing | Fast-Acting |
| Fuse Body Type | Cartridge |
| Overall Length (mm) | 109.90 |
| Overall Length (Inch) | 4-21/64 |
| Overall Length (Decimal Inch) | 4.3300 |
| Overall Diameter (mm) | 44.50 |
| Overall Diameter (Decimal Inch) | 1-3/4 |
| Mounting Type | Bolt-on |
| Interrupting Rating (kA) | 200 @ AC (RMS) |
| Standards Met | CE Certified; CSA C22.2 No. 248.15 Class 1422-02 File 53787 Certified; UL Listed 248-15 Class T Guide JDDZ File E4273 |
