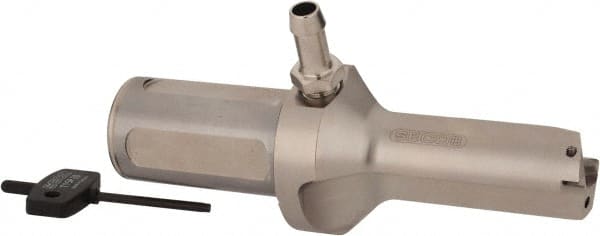

Seco - 2.598" Max Drill Depth, 2xD, 33mm Diam, Indexable Insert Drill - 2 Inserts, 1-1/2" Shank Diam, Straight Shank
Item #: 71962153
Brand: Seco
Model #: 36814
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | SD572 |
| Drill Diameter (mm) | 33.00 |
| Drill Diameter (Decimal Inch) | 1.2992 |
| Maximum Drill Depth (Decimal Inch) | 2.5980 |
| Shank Type | Straight |
| Shank Diameter (Decimal Inch) | 1.5000 |
| Shank Diameter (Inch) | 1-1/2 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 2xD |
| Number of Drill Inserts | 2 |
| Maximum Drill Diameter (Decimal Inch) | 1.6100 |
| Overall Length/Projection (Decimal Inch) | 6.9170 |
| Insert Compatibility (Outside or Peripheral) | WCMX 06T308.. |
| Insert Compatibility | WCMX 080412-86 |
| Flute Length (Decimal Inch) | 2.7950 |
| Body Length (Decimal Inch) | 3.9760 |
| Shank Length (Decimal Inch) | 3.0000 |
| Collar Diameter (Decimal Inch) | 2.3030 |
| Series | PerfoMAX |
