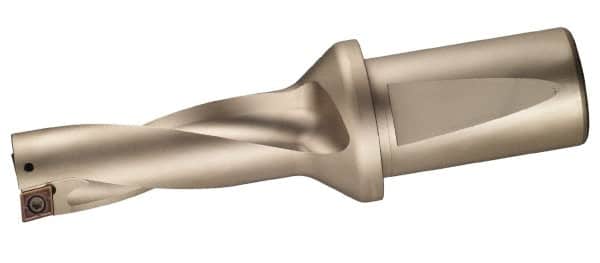

Sumitomo - 2.556" Max Drill Depth, 3xD, 13/16" Diam, Indexable Insert Drill - 2 Inserts, 1" Shank Diam, Straight Shank
Item #: 71965180
Brand: Sumitomo
Model #: 2A00W2F
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | WDX |
| Drill Diameter (Inch) | 13/16 |
| Drill Diameter (Decimal Inch) | 0.8125 |
| Maximum Drill Depth (Decimal Inch) | 2.5560 |
| Shank Type | Straight |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Shank Diameter (Inch) | 1 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 3xD |
| Toolholder Material | Steel |
| Number of Drill Inserts | 2 |
| Overall Length/Projection (Decimal Inch) | 5.6460 |
| Insert Compatibility | WDXT 063006 |
| Flute Length (Decimal Inch) | 2.5560 |
| Body Length (Decimal Inch) | 3.1460 |
| Shank Length (Decimal Inch) | 2.5000 |
| Collar Diameter (Decimal Inch) | 1.2990 |
| Series | SumiDrill |
