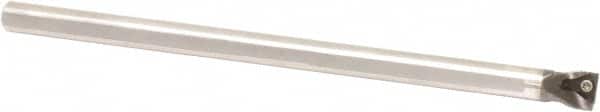

Sumitomo - 5/8" Min Bore Diam, 8" OAL, 1/2" Shank Diam, C-STUP Indexable Boring Bar - TPGT 21.5 Insert, Screw Holding Method
Item #: 71969166
Brand: Sumitomo
Model #: 2600W04
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | C-STUP |
| Series | Sumi-UFO |
| Minimum Bore Diameter (Decimal Inch) | 0.6250 |
| Hand of Holder | Right Hand |
| Overall Length (Decimal Inch) | 8.0000 |
| Shank Diameter (Decimal Inch) | 0.5000 |
| Insert Compatibility | TPGT 21.5 |
| Through Coolant | No |
| Multi-Use Tool | No |
| Insert Holding Method | Screw |
| Rake | Negative |
| Center to Cutting Edge (Decimal Inch) | 0.3130 |
| Insert Thickness (Inch) | 3/32 |
| Insert Inscribed Circle (Inch) | 1/4 |
| Rake Angle | -6 |
| Complete Insert Compatibility | TPGT 21.5LFW |
| Toolholder Material | Carbide |
