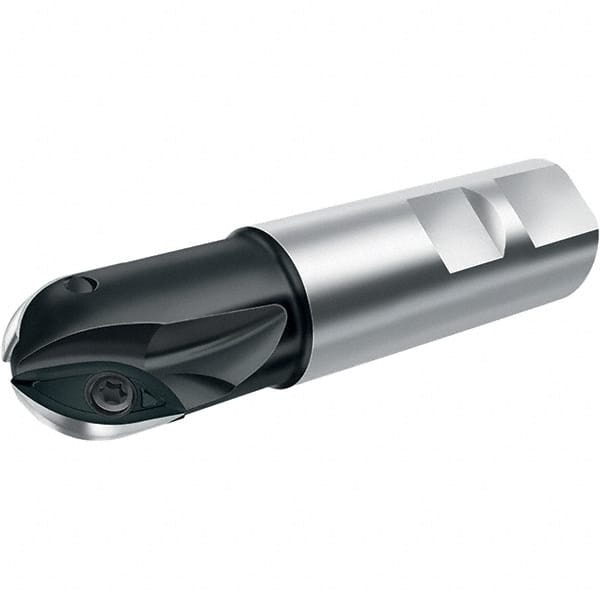

Walter - 3/4" Cut Diam, 0.59" Max Depth of Cut, 3/4" Shank Diam, 3.41" OAL, Indexable Ball Nose End Mill - 1.38" Head Length, Straight Shank, F2339 Toolholder, XDMT 16T3095 R Insert
Item #: 71970479
Brand: Walter
Model #: 5026680
Exact Tooling IR#: 04
Features and Benefits
Straight shanks are used for general purpose machining and commonly have a larger diameter than taper shanks.
| Product Specifications | |
|---|---|
| Cutting Diameter (Inch) | 3/4 |
| Cutting Diameter (Decimal Inch) | 0.7500 |
| Maximum Depth of Cut (Decimal Inch) | 0.5900 |
| Shank Type | Straight Shank |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Number of Ball Nose Inserts Used on Toolholder | 2 |
| Insert Style | XDMT 16T3095 R |
| Toolholder Style | F2339 |
| Overall Length (Decimal Inch) | 3.4100 |
| Insert Holding Method | Screw |
| Through Coolant | NonThrough Coolant |
| Weldon Flat | Yes |
| Tapered Neck | No |
| Number of Flutes | 2 |
| Head Length (Decimal Inch) | 1.3800 |
