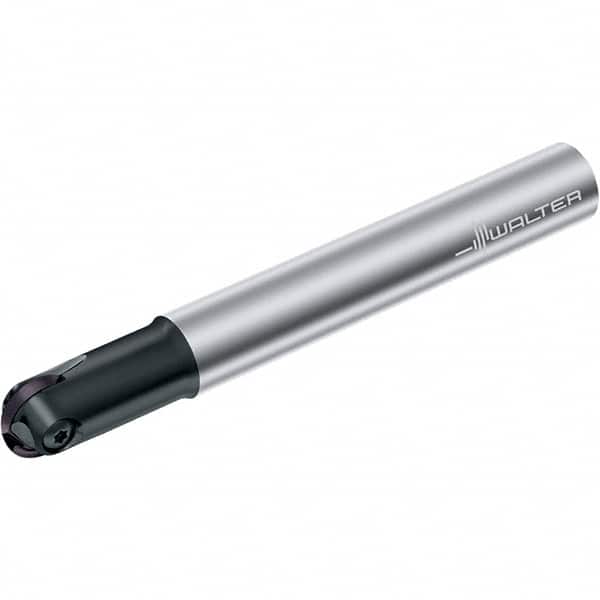

Walter - 16mm Cut Diam, 5/8" Shank Diam, 5.51" OAL, Indexable Ball Nose End Mill - 1.41" Head Length, Straight Shank, F2139 Toolholder, P3201-D15.87, P3201-D16, P3204-D15.87, P3204-D16 Insert
Item #: 71970487
Brand: Walter
Model #: 5026568
Exact Tooling IR#: 04
Features and Benefits
Straight shanks are used for general purpose machining and commonly have a larger diameter than taper shanks.
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 16.00 |
| Cutting Diameter (Decimal Inch) | 0.6299 |
| Shank Type | Straight Shank |
| Shank Diameter (Decimal Inch) | 0.6250 |
| Number of Ball Nose Inserts Used on Toolholder | 1 |
| Insert Style | P3201-D15.87; P3201-D16; P3204-D15.87; P3204-D16 |
| Toolholder Style | F2139 |
| Overall Length (Decimal Inch) | 5.5100 |
| Insert Holding Method | Screw |
| Through Coolant | NonThrough Coolant |
| Weldon Flat | No |
| Tapered Neck | No |
| Number of Flutes | 2 |
| Head Length (Decimal Inch) | 1.4100 |
