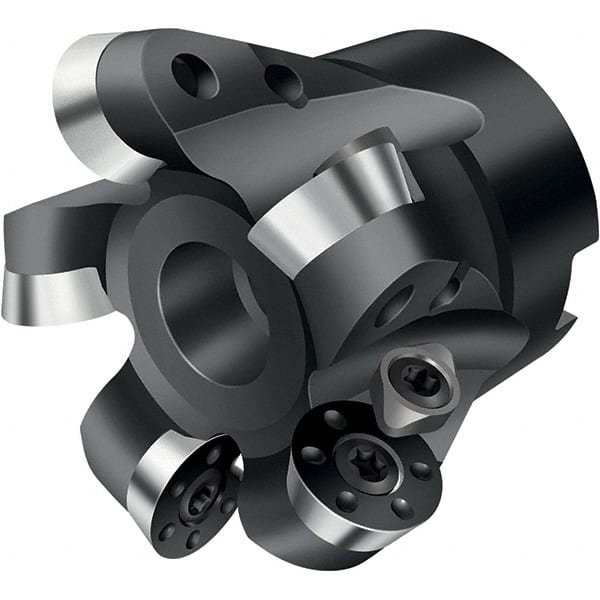

Walter - 2" Cut Diam, 0.236" Max Depth, 3/4" Arbor Hole, 5 Inserts, RD.. 1204.. Insert Style, Indexable Copy Face Mill - F2234 Cutter Style, 2" High, Through Coolant
Item #: 71974992
Brand: Walter
Model #: 5109207
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 2.0000 |
| Maximum Depth of Cut (Decimal Inch) | 0.2360 |
| Arbor Hole Diameter (Decimal Inch) | 0.7500 |
| Overall Height (Decimal Inch) | 2.0000 |
| Number of Cutter Inserts | 5 |
| Insert Compatibility | RD.. 1204.. |
| Cutter Style | F2234 |
| Through Coolant | Yes |
| Insert Holding Method | Screw |
| Cutting Direction | Right Hand |
| Complete Insert Compatibility | RDGT 1204M0-G85; RDGT 1204M0-G88; RDHW 1204M0-A57; RDHW 1204M0T-A27; RDMT 1204M0-D57; RDMW 1204M0T-A27 |
