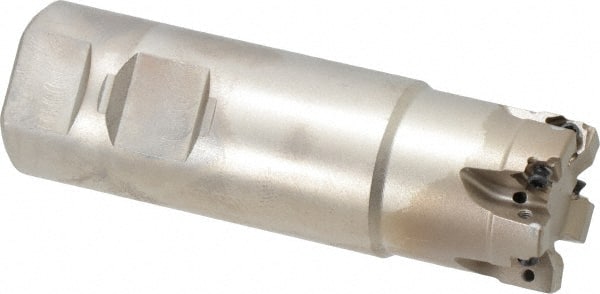

Seco - 1-1/4" Cut Diam, 0.157" Max Depth of Cut, 1-1/4" Shank Diam, 4" OAL, Indexable Square Shoulder End Mill - XNEX 04.. Inserts, Weldon Shank, 90° Lead Angle, Through Coolant, Series R217.96
Item #: 71994578
Brand: Seco
Model #: 68251
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 1.2500 |
| Cutting Diameter (Inch) | 1-1/4 |
| Shank Type | Weldon |
| Shank Diameter (Inch) | 1-1/4 |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Overall Length/Projection (Decimal Inch) | 4.0000 |
| Lead Angle | 90 |
| Series | R217.96 |
| Through Coolant | Coolant Through |
| Maximum Depth of Cut (Decimal Inch) | 0.1570 |
| Number of Cutter Inserts | 5 |
| Insert Holding Method | Screw |
| Head Length (Decimal Inch) | 1.2400 |
| Insert Compatibility | XNEX 04.. |
| Maximum RPM | 23200 |
