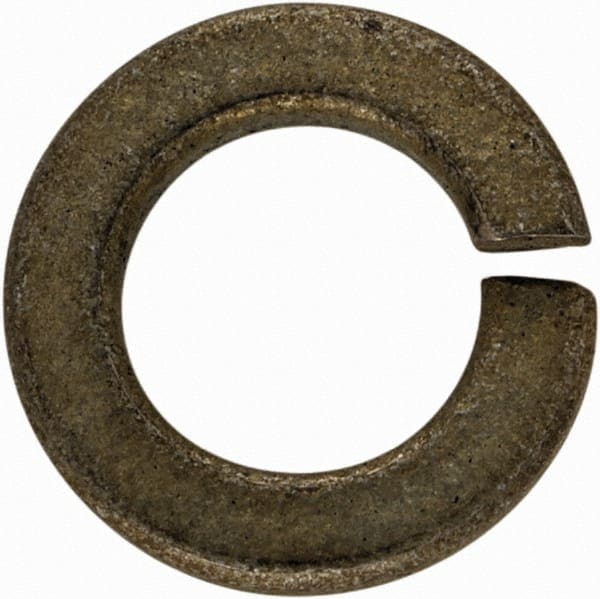

Made in USA - #8, 0.04" Thick Split Lock Washer - Spring Steel, Zinc Yellow Dichromate Finish, 0.167" Min ID, 0.174" Max ID, 0.293" Max OD
Item #: 72058266
Brand: Made in USA
Exact Tooling IR#: 04
Features and Benefits
Split lock washers have a split at one point along their outer diameter, which creates compression and tension to lock the nut in place. Split lock washers are used in high-vibration applications.
Spring steel is a low-alloy, carbon steel with very high yield strength.
| Product Specifications | |
|---|---|
| System of Measurement | Inch |
| Type | Split Lock Washer |
| Screw Size | #8 |
| Material | Spring Steel |
| Finish/Coating | Zinc Yellow Dichromate |
| Thickness (Decimal Inch) | 0.0400 |
| Minimum Inside Diameter (Decimal Inch) | 0.1670 |
| Maximum Inside Diameter (Decimal Inch) | 0.1740 |
| Maximum Outside Diameter (Decimal Inch) | 0.2930 |
| Military Specification | Meets Military Specifications |
| Fastener Standard | MS35338 |
