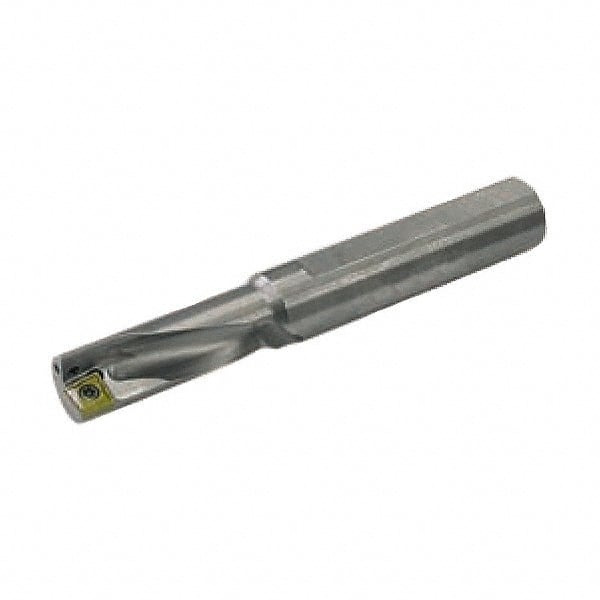

Allied Machine and Engineering - 2.22" Max Drill Depth, 2.25xD, 20mm Diam, Indexable Insert Drill - 1 Insert, 1-1/4" Shank Diam, Straight Shank
Item #: 72108178
Brand: Allied Machine and Engineering
Model #: 11147321
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | EC |
| Drill Diameter (mm) | 20.00 |
| Drill Diameter (Decimal Inch) | 0.7874 |
| Maximum Drill Depth (Decimal Inch) | 2.2200 |
| Shank Type | Straight |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Shank Diameter (Inch) | 1-1/4 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 2.25xD |
| Insert Size (Decimal Inch) | 0.4920 |
| Number of Drill Inserts | 1 |
| Maximum Drill Diameter (Decimal Inch) | 0.8070 |
| Overall Length/Projection (Decimal Inch) | 5.0900 |
| Insert Compatibility | XCET 130404FN-27P; XCET 130404FN-27Q; XCET 130408FN-27P; XCET 130408FN-27Q; XCNT 130404EN; XCNT 130404EN-M50Q; XCNT 130408EN; XCNT 130408EN-M50Q |
| Flute Length (Decimal Inch) | 2.2200 |
| Body Length (Decimal Inch) | 2.7150 |
| Shank Length (Decimal Inch) | 2.3750 |
| Collar Diameter (Decimal Inch) | 1.5750 |
| Series | EcoCut Classic |
| Coolant Hole Thread Type | NPT |
| Shank End Coolant Hole Thread Size (Inch) | 1/4-18 |
