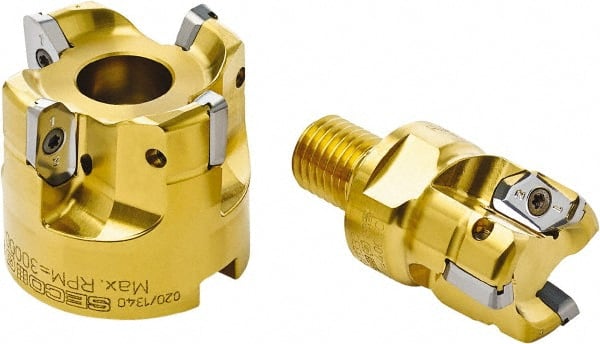

Seco - 40mm Cutting Diam, 7.5mm Max Depth of Cut, Modular Connection Indexable Copy End Mill - 3 Inserts, XP.. 12 Insert, R217.97 Toolholder, Through Coolant
Item #: 72153877
Brand: Seco
Model #: 21862
Exact Tooling IR#: 04
Features and Benefits
Modular connections allow for single end mill to accept various shank diameters without changing machine toolholding set-ups.
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 40.00 |
| Cutting Diameter (Decimal Inch) | 1.5748 |
| Maximum Depth of Cut (mm) | 7.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.2953 |
| Shank Type | Modular Connection |
| Modular Connection Thread Size | M16 |
| Number of Cutter Inserts | 3 |
| Insert Style | XP.. 12 |
| Toolholder Style | R217.97 |
| Overall Length (Decimal Inch) | 1.5750 |
| Insert Diameter (mm) | 10.07 |
| Insert Diameter (Decimal Inch) | 0.3965 |
| Insert Holding Method | Screw |
| Through Coolant | Through Coolant |
| Weldon Flat | No |
| Minimum Cutting Diameter (mm) | 40.00 |
| Maximum RPM | 35000 |
| Minimum Cutting Diameter (Decimal Inch) | 1.5748 |
| Modular Connection Size | M16 |
