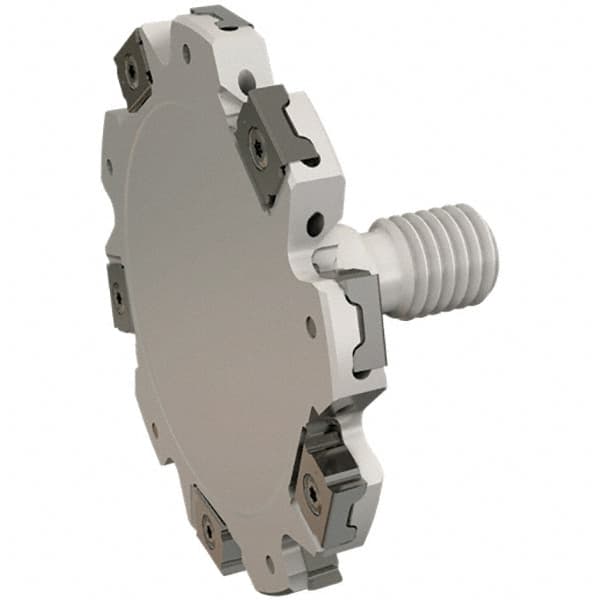

Iscar - Modular Connection Connection, 0.8661" Depth of Cut, 63mm Cutter Diam, 5 Tooth Indexable Slotting Cutter - ETS-LN08-M Toolholder, LNET Insert
Item #: 72184765
Brand: Iscar
Model #: 3103678
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Modular Connection |
| Maximum Depth of Cut (mm) | 22.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.8661 |
| Cutter Diameter (mm) | 63.00 |
| Cutter Diameter (Decimal Inch) | 2.4803 |
| Modular Connection Size | M10 |
| Number of Teeth | 5 |
| Toolholder Style | ETS-LN08-M |
| Series | Mini-TangSlot FlexFit (ETS-LN08-M) |
| Insert Style | LNET |
| Staggered Tooth | Yes |
| Number of Cutter Inserts | 10 |
| Insert Holding Method | Clamp |
| Minimum Cutting Width (Decimal Inch) | 0.1575 |
| Maximum Cutting Width (Decimal Inch) | 0.1772 |
| Maximum Cutting Width (mm) | 4.50 |
| Hub Diameter (mm) | 18.00 |
| Hub Diameter (Decimal Inch) | 0.7087 |
