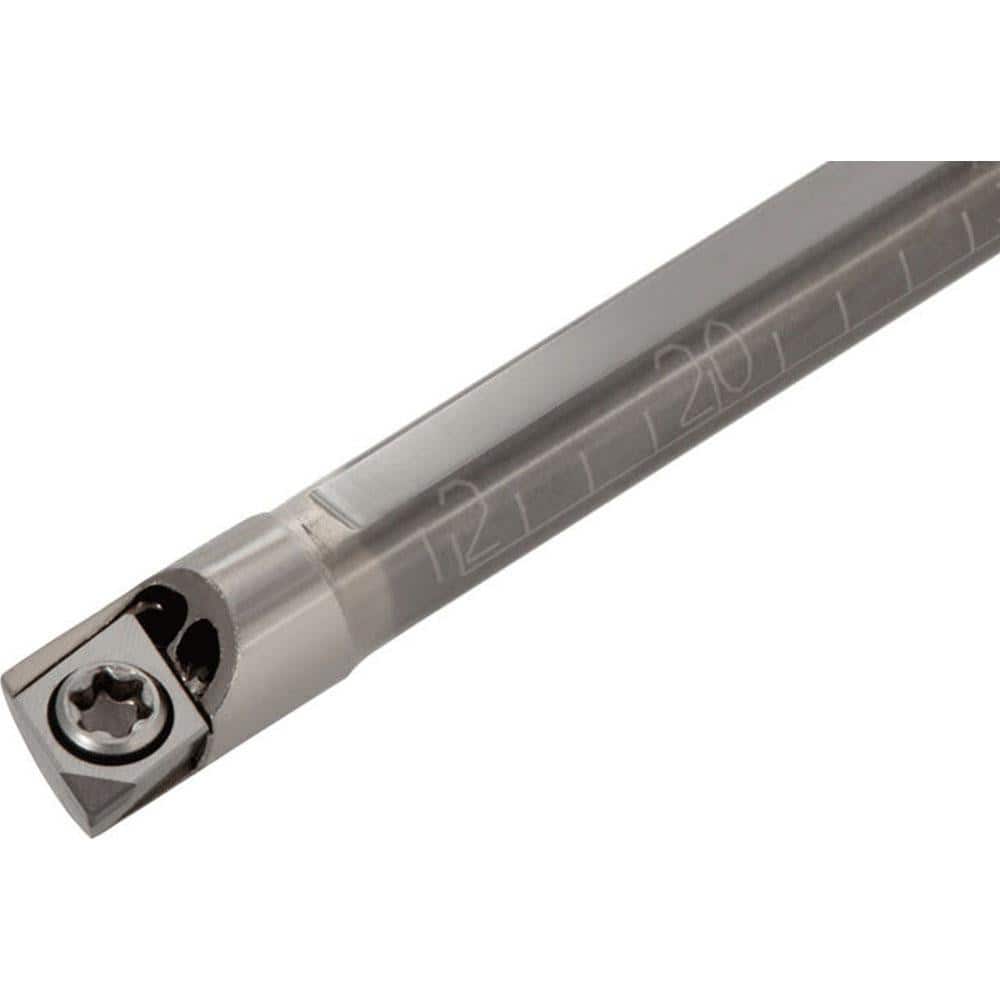

Indexable Boring Bar: A05-SEXPR04-D04, 100.00° N/A Steel 5.0000″ OAL, Screw,
Item #: 72209679
Brand: Tungaloy
Model #: 6850451
Product Specifications
| Minimum Bore Diameter (Decimal Inch) | 0.2500 |
| Minimum Bore Diameter (Inch) | 1/4 |
| Maximum Bore Depth (Decimal Inch) | 1.2520 |
| Toolholder Style | SEXP |
| Tool Material | Steel |
| Shank Diameter (Decimal Inch) | 0.3130 |
| Overall Length (Decimal Inch) | 5.0000 |
| Overall Length (mm) | 5.00 |
| Overall Length (Inch) | 5 |
| Compatible Insert Size Code | 52 |
| Insert Holding Method | Screw |
| Compatible Insert Shape | Diamond |
| Insert Included | No |
| Rake | Positive |
| Cutting Direction | Right Hand |
| Rake Angle | -12.00 |
| Lead Angle | 100.00 |
| Series | SEXP |
| Insert Inscribed Circle (Decimal Inch) | 0.1560 |
| Compatible Insert Thickness (Decimal Inch) | 0.0630 |
| Cutting Tool Application | Boring |
| Center to Cutting Edge (Decimal Inch) | 0.1250 |
| Center to Cutting Edge (Inch) | 1/8 |
| Primary Workpiece Material | Universal |
| Coolant Through | Yes |
