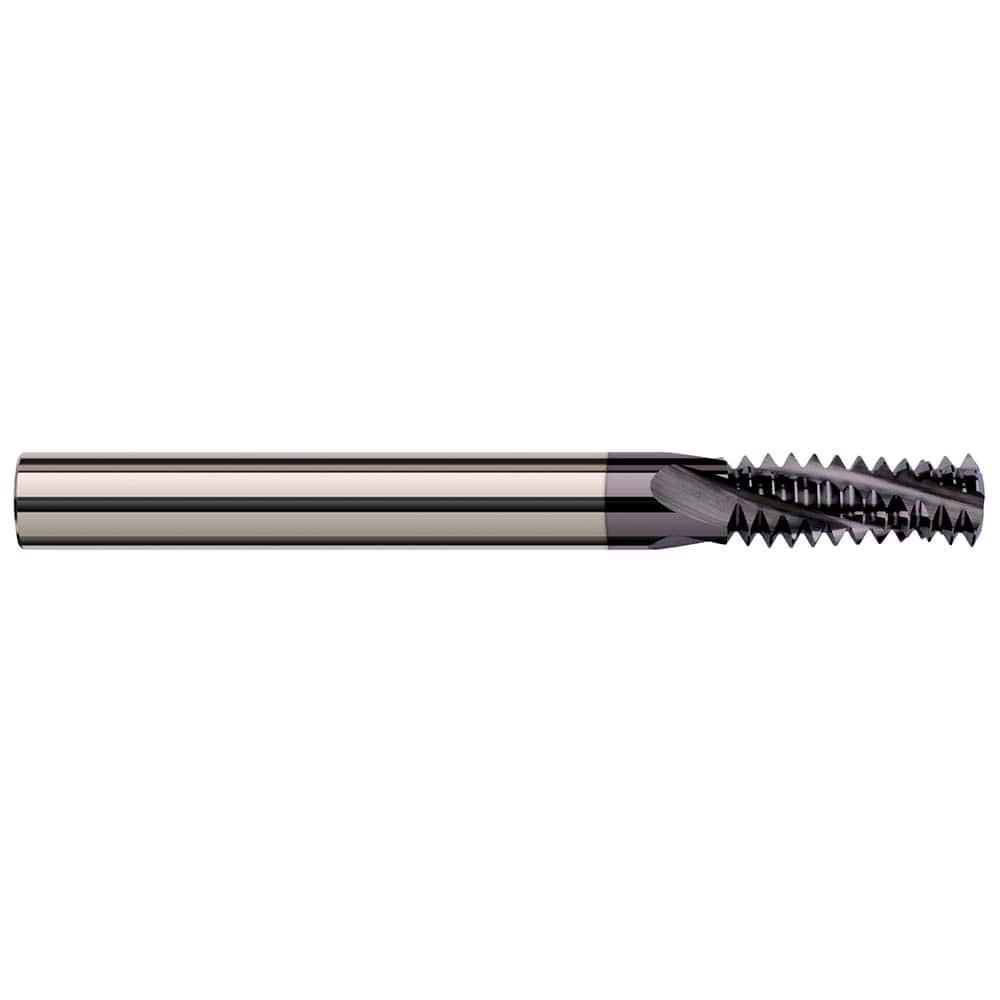

Harvey Tool - #4-40 Internal/External 3-Flute Solid Carbide Helical Flute Thread Mill
Item #: 72228612
Brand: Harvey Tool
Model #: 70016-C3
Product Specifications
| Threads Per Inch | 40 |
| Thread Size (Inch) | 4-40 |
| Minimum Nominal Diameter (Inch) | #4 |
| Material | Solid Carbide |
| Thread Type | Internal/External |
| Shank Diameter (Inch) | 1/8 |
| Number of Flutes | 3 |
| Cutting Diameter (Decimal Inch) | 0.0850 |
| Finish/Coating | AlTiN |
| Length of Cut (Decimal Inch) | 0.1750 |
| Thread Standard | UN |
| Through Coolant | No |
| Overall Length (Decimal Inch) | 2.00000 |
| Overall Length (Inch) | 2 |
| Material Grade | Micrograin |
