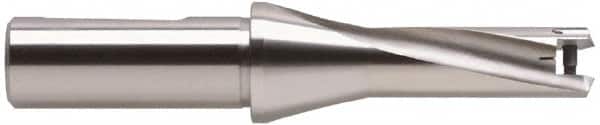

Guhring - 11.5 to 11.91mm Diam, 3xD, 36mm Max Depth, 16mm Shank Diam, 51mm Flute, 103mm OAL, Replaceable Tip Drill - HT 800 WP Insert, 115 Seat Size, Series 4042
Item #: 72305725
Brand: Guhring
Model #: 9040420115000
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | 4042 |
| Minimum Drill Diameter (mm) | 11.50 |
| Maximum Drill Diameter (mm) | 11.91 |
| Drill Depth by Diameter Ratio | 3xD |
| Maximum Drill Depth (mm) | 36.00 |
| Shank Diameter (mm) | 16.00 |
| Insert Style | HT 800 WP |
| Insert Seat Size | 115 |
| Through Coolant | Through Coolant |
| Shank Type | Whistle Notch |
| Flute Length (mm) | 51.00 |
| Overall Length (mm) | 103.00 |
| Toolholder Material | High Speed Steel |
| Shank Length (mm) | 48.00 |
