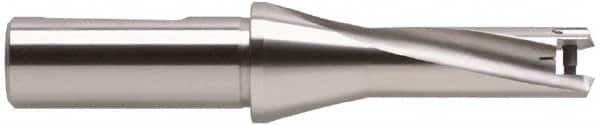

Guhring - 12.5 to 12.9mm Diam, 3xD, 42mm Max Depth, 16mm Shank Diam, 59mm Flute, 111mm OAL, Replaceable Tip Drill - HT 800 WP Insert, 125 Seat Size, Series 4042
Item #: 72305766
Brand: Guhring
Model #: 9040420125000
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | 4042 |
| Minimum Drill Diameter (mm) | 12.50 |
| Maximum Drill Diameter (mm) | 12.90 |
| Drill Depth by Diameter Ratio | 3xD |
| Maximum Drill Depth (mm) | 42.00 |
| Shank Diameter (mm) | 16.00 |
| Insert Style | HT 800 WP |
| Insert Seat Size | 125 |
| Through Coolant | Through Coolant |
| Shank Type | Whistle Notch |
| Flute Length (mm) | 59.00 |
| Overall Length (mm) | 111.00 |
| Toolholder Material | High Speed Steel |
| Shank Length (mm) | 48.00 |
