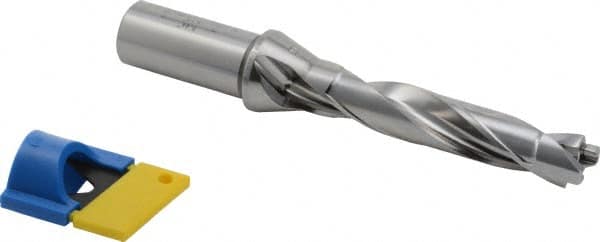

Iscar - 0.827" to 0.862" Diam, 5xD, 4.13" Max Depth, 1" Shank Diam, 7.64" OAL, Replaceable-Tip Drill - FCP, ICK, ICK-2M, ICM, ICP, iCP-2M Insert, 72419419 Toolholder, Series SumoCham
Item #: 72419419
Brand: Iscar
Model #: 3202652
Exact Tooling IR#: 04
Features and Benefits
Straight shanks are used for general purpose machining and commonly have a larger diameter than taper shanks.
| Product Specifications | |
|---|---|
| Series | SumoCham |
| Minimum Drill Diameter (Decimal Inch) | 0.8270 |
| Maximum Drill Diameter (Decimal Inch) | 0.8620 |
| Drill Depth by Diameter Ratio | 5xD |
| Maximum Drill Depth (Decimal Inch) | 4.1300 |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Insert Style | FCP; ICK; ICK-2M; ICM; ICP; iCP-2M |
| Toolholder Style | DCN |
| Through Coolant | Through Coolant |
| Shank Type | Straight Shank |
| Body Length (Decimal Inch) | 5.4400 |
| Overall Length (Decimal Inch) | 7.6400 |
| Shank Length (Decimal Inch) | 2.2000 |
