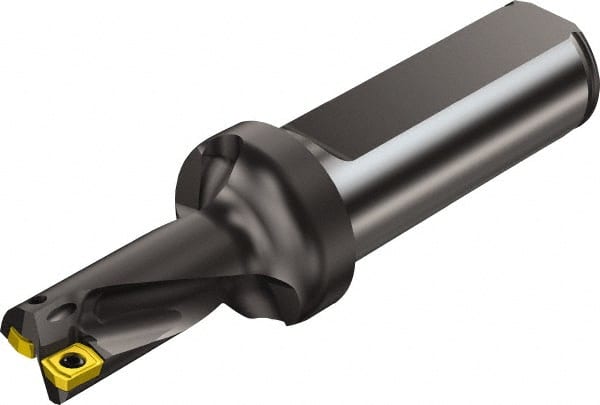

Sandvik Coromant - 1.7702" Max Drill Depth, 2xD, 0.812" Diam, Indexable Insert Drill - 2 Inserts, 1" Shank Diam, Straight Shank
Item #: 72423635
Brand: Sandvik Coromant
Model #: 5723694
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | A880..LXxx-02 |
| Drill Diameter (Decimal Inch) | 0.8120 |
| Maximum Drill Depth (Decimal Inch) | 1.7702 |
| Shank Type | Straight |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Shank Diameter (Inch) | 1 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 2xD |
| Toolholder Material | Steel |
| Insert Size (mm) | 2.8 |
| Insert Size (Decimal Inch) | 0.1102 |
| Number of Drill Inserts | 2 |
| Maximum Drill Diameter (Decimal Inch) | 0.8750 |
| Maximum Drill Diameter (mm) | 20.62 |
| Overall Length/Projection (mm) | 117.95 |
| Overall Length/Projection (Decimal Inch) | 4.6437 |
| Insert Compatibility (Outside or Peripheral) | 04P |
| Flute Length (mm) | 56.93 |
| Flute Length (Decimal Inch) | 2.2415 |
| Body Length (Decimal Inch) | 1.7700 |
| Body Length (mm) | 44.96 |
| Shank Length (mm) | 56.00 |
| Shank Length (Decimal Inch) | 2.2047 |
| Radius (Decimal Inch) | 0.4060 |
| Series | CoroDrill 880 |
