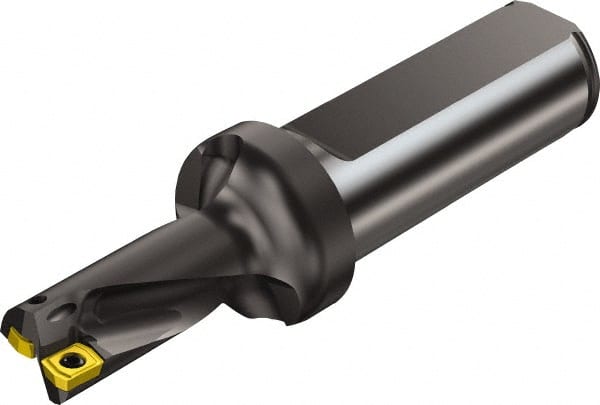

Sandvik Coromant - 3.675" Max Drill Depth, 2xD, 1-3/4" Diam, Indexable Insert Drill - 2 Inserts, 1-1/2" Shank Diam, Straight Shank
Item #: 72423700
Brand: Sandvik Coromant
Model #: 5723272
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | A880..LXxx-02 |
| Drill Diameter (mm) | 44.45 |
| Drill Diameter (Inch) | 1-3/4 |
| Drill Diameter (Decimal Inch) | 1.7500 |
| Maximum Drill Depth (Decimal Inch) | 3.6750 |
| Shank Type | Straight |
| Shank Diameter (Decimal Inch) | 1.5000 |
| Shank Diameter (Inch) | 1-1/2 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 2xD |
| Toolholder Material | Steel |
| Insert Size (mm) | 4.5 |
| Insert Size (Decimal Inch) | 0.1772 |
| Number of Drill Inserts | 2 |
| Maximum Drill Diameter (Decimal Inch) | 1.8640 |
| Maximum Drill Diameter (mm) | 44.45 |
| Overall Length/Projection (mm) | 194.64 |
| Overall Length/Projection (Decimal Inch) | 7.6629 |
| Insert Compatibility (Outside or Peripheral) | 08P |
| Flute Length (mm) | 119.62 |
| Flute Length (Decimal Inch) | 4.7093 |
| Body Length (Decimal Inch) | 3.6750 |
| Body Length (mm) | 93.35 |
| Shank Length (mm) | 70.00 |
| Shank Length (Decimal Inch) | 2.7559 |
| Radius (Decimal Inch) | 0.8750 |
| Series | CoroDrill 880 |
