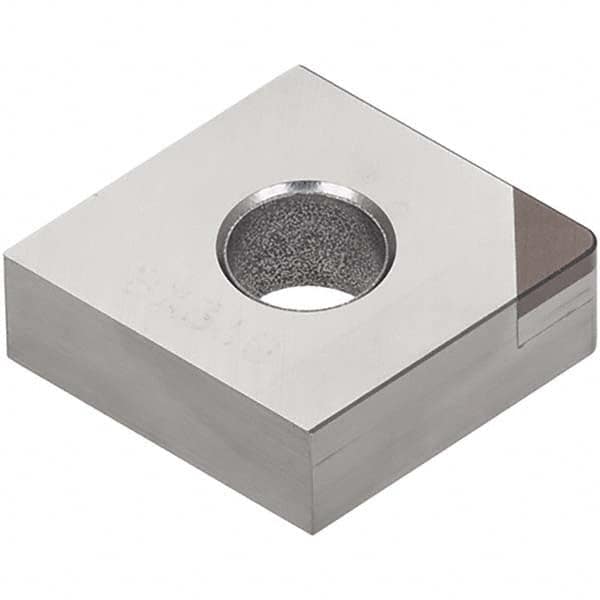

Turning Insert
Item #: 72424328
Brand: Tungaloy
Model #: 6801837
Product Specifications
| Insert Style | CNGA |
| Insert Shape Code | C |
| Insert Size Code | 432 |
| Insert Shape | Diamond |
| Clearance Code | N |
| Tolerance Code | G |
| Manufacturer Grade | BX360 |
| Hole Diameter (Decimal Inch) | 0.2030 |
| Maximum Depth of Cut (Decimal Inch) | 0.0394 |
| Inscribed Circle (Inch) | 1/2 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Insert Thickness (Decimal Inch) | 0.1870 |
| Corner Radius (Decimal Inch) | 0.0310 |
| Included Angle | 80.0 |
| Series | CNGA |
| Rake | Negative |
| Insert Length (Decimal Inch) | 0.1540 |
| Number Of Cutting Edges | 1 |
| Primary Workpiece Material Code | H |
| Iso Code | CNGA 432 QBN |
| Standards | ISO |
| Chip Breaker | A |
