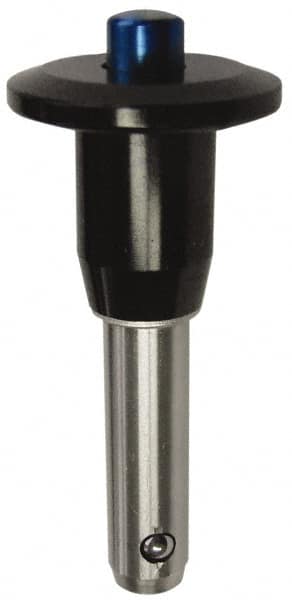

Gibraltar - 1/4" Diam, 1/2" Usable Length, Button Handle, Quick Release Pin - Grade 17-4 Stainless Steel, Bright Finish
Item #: 72615487
Brand: Gibraltar
Exact Tooling IR#: 04
Features and Benefits
Quick-release pins are used to align, hold and lock components in an assembly. They are inserted into a hole and locked in place using a variety of handle types. Quick-release pins are ideal in applications that require frequent and repetitive adjustment.
Button handle quick-release pins feature a small push button on the pin s head. The pin is inserted and removed by pushing the button.
Stainless steel is a strong, corrosion-resistant alloy with excellent resistance to heat. It is used in high-stress, outdoor and corrosive applications.
| Product Specifications | |
|---|---|
| Type | Quick Release Pin |
| Handle Type | Button Handle |
| System of Measurement | Inch |
| Pin Diameter (Inch) | 1/4 |
| Usable Length (Decimal Inch) | 0.5000 |
| Usable Length (Inch) | 1/2 |
| Pin Material | Stainless Steel |
| Pin Finish/Coating | Bright |
| Pin Material Grade | 17-4 |
