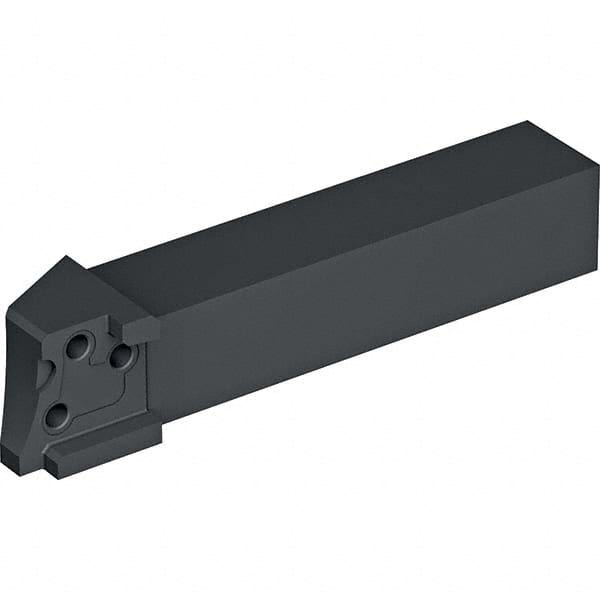

Walter - 0.827" Max Depth, 0.024" to 0.197" Width, External Right Hand Indexable Grooving/Cutoff Toolholder
Item #: 72616584
Brand: Walter
Model #: 5028834
Product Specifications
| Internal or External | External |
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.8270 |
| Minimum Groove Width (Decimal Inch) | 0.0240 |
| Maximum Groove Width (Decimal Inch) | 0.1970 |
| Overall Length (Decimal Inch) | 5.3660 |
| Toolholder Style | MSS-E |
| Insert Compatibility | FX2.2..; FX3.1..; FX4.1..; GX16-1..; GX16-2..; GX16-3..; GX24-2.. |
| Shank Height (Decimal Inch) | 0.7500 |
| Shank Width/Diameter (Decimal Inch) | 0.7500 |
| Through Coolant | NonThrough Coolant |
| Insert Holding Method | Self Clamp |
| Full Radius Insert | Yes |
| Minimum Hole Diameter (Decimal Inch) | 1.9690 |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.9670 |
| Complete Insert Compatibility | FX2.2-E220N010-CE4; FX2.2-E220N010-CK8; FX2.2-E220N015-CE6; FX2.2-E220R/L4-CE4; FX2.2-E220R/L5-CE6; FX3.1-E310N015-CE4; FX3.1-E310N015-CK8; FX3.1-E310N020-CE6; FX3.1-E310N040-CD3; FX3.1-E310N040-CE6; FX3.1-E310R/L5-CE6; FX3.1-E310R/L6-CE4; FX4.1-E410N015- |
